2B6X6 GUOMAT Double Convoluted Suspension Air Spring FD70-13 Contitech Air Bellows

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6X6

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Name:	Suspension Air Spring	Spring Material:	Rubber+Steel
Product Warranty:	12 Months	Quality:	100% Tested
Contitech:	FD70-13	Weight:	1.6KG
Design Height:	152mm	Keywords:	Air Spring,Air Suspension Kit
Highlight:	FD70-13 Suspension Air Spring , 2B6X6 Suspension Air Spring , Contitech Suspension Air Spring

2B6X6 GUOMAT Double Convoluted Suspension Air Spring FD70-13 Contitech Air Bellows

Description

Air Suspension Spring is a component of the automobile suspension system that uses compressed air as an elastic medium to replace traditional steel coil springs or leaf springs. It adjusts the internal air pressure to adapt to different loads and driving conditions, providing more flexible shock absorption and support performance.

Manufacturer: GUOMAT

Manufacturer Part Number: 2B6X6

OEM Contitech Part Number: FD70-13

OEM Contitech Part Number: FD 70-13

OEM Contitech Part Number: FD70-13 CI

OEM Contitech Part Number: FD 70-13 CI

OEM Contitech Part Number: FD70-13 CI G1/4

OEM Contitech Part Number: FD 70-13 CI G1/4

OEM EAA Part Number: 2E6X6

Technical Data

Cover Plate	Top Cover Plate Diameter:113mm
Cover Plate	Bottom Cover Plate Diameter:113mm
Air Inlet	1/2 NPT
Blind Nut	Screw and Gas Hole Distance Of Top Cover Plate:22mm
	Screw Center Distance Of Top Cover Plate:44.5mm
	Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
	Bottom Cover Plate Screw (Nut) Tooth:1X3/8-16UNC
Rubber Bellow	Rubber Bellow Diameter:145mm
	The Working Stroke:MAX 175mm to MIN 65mm
	Maximum Height:175mm
	Minimum Height:65mm
	Compression Height:110mm

Pneumatic application – static characteristic value

Force (lbf)

Pressure P	psi	40	60	80	100	120	Vol.V(in.³)
height H (in.)	7.0	354	556	749	942	1140	110
	6.5	459	679	906	1150	1400	100
	6.0	542	795	1070	1340	1630	93
	5.5	605	903	1200	1510	1820	91
	5.0	673	999	1340	1670	2040	84
	4.5	730	1090	1470	1830	2230	76
	4.0	797	1200	1600	1990	2400	68
	3.5	855	1280	1710	2150	2560	54
	3.0	901	1350	1790	2240	2640	40

Disadvantages and Maintenance of Suspension Air Springs
High cost: The structure is complex and the maintenance cost is much higher than that of traditional suspension.

Environmental sensitivity: Extreme low temperatures may cause rubber hardening or air path freezing.

Durability: The airbag may crack and leak after long-term use and needs to be checked regularly.

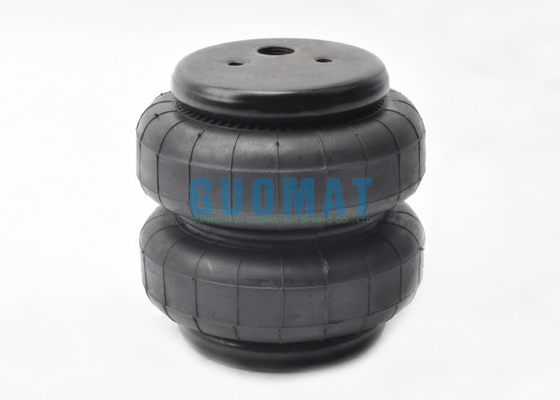

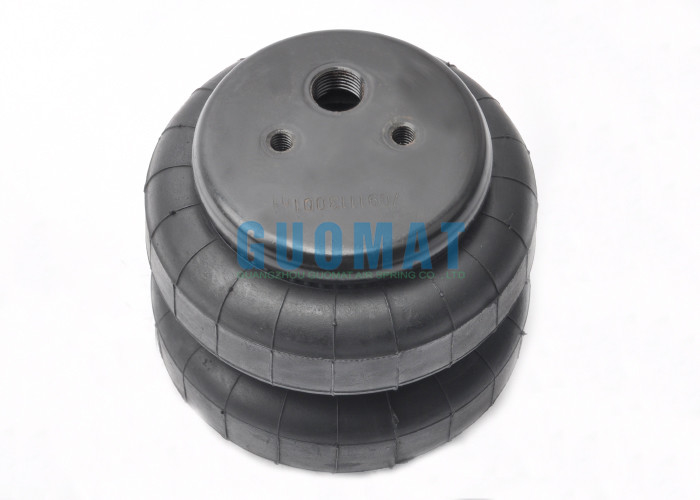

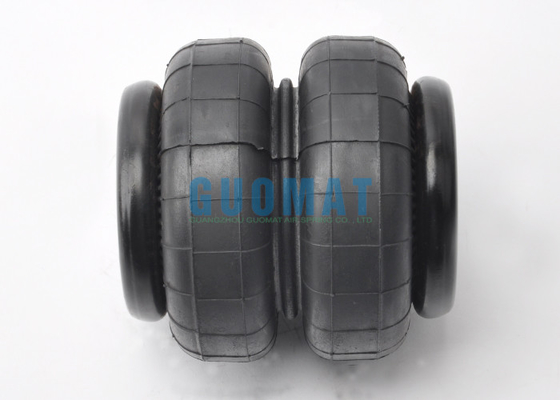

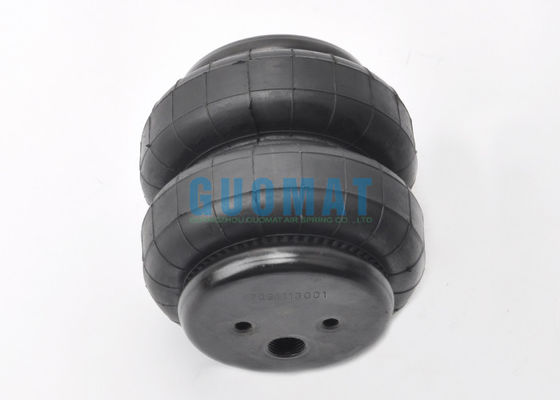

Product details picture
