FD 200-19 504 Contitech Rubber Convoluted Air Spring W01-358-6926 Firestone Air Ride Bags

FD 200-19 504 Contitech Rubber Convoluted Air Spring W01-358-6926 Firestone Air Ride Bags

  • FD 200-19 504 Contitech Rubber Convoluted Air Spring W01-358-6926 Firestone Air Ride Bags
  • FD 200-19 504 Contitech Rubber Convoluted Air Spring W01-358-6926 Firestone Air Ride Bags
  • FD 200-19 504 Contitech Rubber Convoluted Air Spring W01-358-6926 Firestone Air Ride Bags
  • FD 200-19 504 Contitech Rubber Convoluted Air Spring W01-358-6926 Firestone Air Ride Bags
FD 200-19 504 Contitech Rubber Convoluted Air Spring W01-358-6926 Firestone Air Ride Bags
Product Details:
Place of Origin: Guangdong, China
Brand Name: GUOMAT
Certification: ISO/TS16949, ISO9001
Model Number: 2B6926
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $59.9-69.9/pc
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 5-8 Working Days
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 1000PCS/Week
Contact Now
Detailed Product Description
Model Name: Suspension Air Spring Condition: 100% Brand-New
Function: Reduce Shock Trademark: GUOMAT
Structure: Double Convoluted Firestone: W01-358-6926
Usage: For Truck And Trailer Port: Guangzhou
Highlight:

FD 200-19 504 Contitech Rubber Convoluted Air Spring

,

W01-358-6926 Rubber Convoluted Air Spring

FD 200-19 504 Contitech Rubber Convoluted Air Spring W01-358-6926 Firestone Air Ride Bags


Cross Reference Numbers

Firestone Style Style 20
Firestone Number W01-358-6926 / W01 358 6926 / W013586926
Firestone Number WO1-358-6926 / WO1 358 6926 / WO13586926
Contitech Number FD200-19 504 / FD 200-19 504 / 64516
Fleetpride Number AS6926
Goodyear Number 2B9-288 / 2B 9-288 / 2B9 288 / 2B9288
Goodyear Flex Number 578923211 / 578-92-3-211 / 578 92 3 211
Taurus Number 6325
Triange AS-4504
TRP Number AS69260
Automann Number SP2B12R-6926



2B6926 Double Convoluted Air Suspension Spring Technical Data

Top cover plate diameter: 6.31 inches

Bottom cover plate diameter: 6.31 inches

Air fitting: 1/4-18 NPTF

Threaded hole on top plate: 2x3/8-16UNC

Threaded hole on bottom plate: 2x3/8-16UNC

Center distance between threaded holes: 3.5 inches

Center distance between threaded hole and air hole: 1.51 inches

Max.height: 10.5 inches

Min.height: 3.70 inches



Bolt / Mounting Stud: Bolt is fixed as the installation of air spring in car or equipment

Upper Retainer: Upper Retainer to protect the whole air spring

Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision

Flexible Bellows: The main part can lock the air and flexible activities up and down

Piston/ The base: Base is also carrying fluctuation pressure, sealed air and make skins can according to the fluctuation of the trajectory

Mounting Stud: fixed as the installation of air spring in car or equipment



Six Reasons to Choose Us

1.Hight stability
2.In situ installation
3.Ride comfort
4.Safe and durable
5.Effective shock absorption
6.Reduce the sound

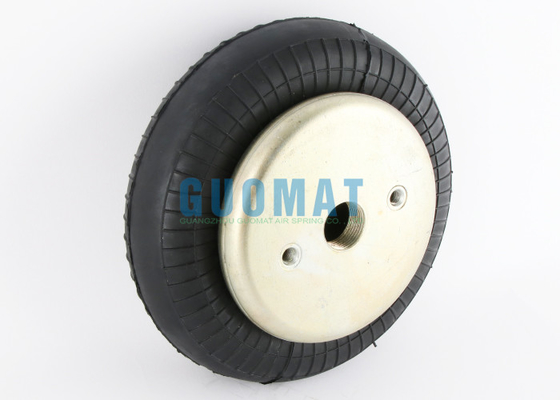

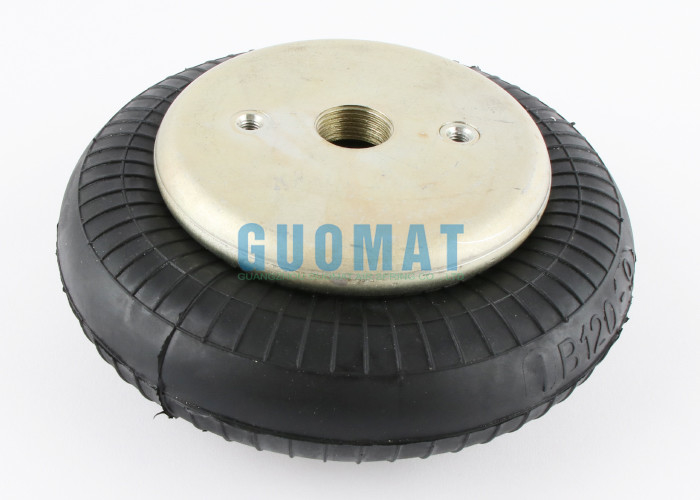

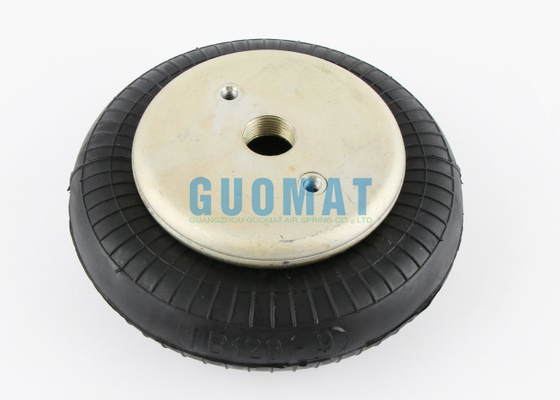

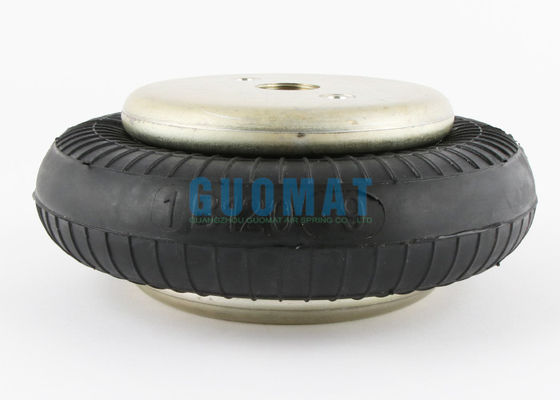

Product Image

FD 200-19 504 Contitech Rubber Convoluted Air Spring W01-358-6926 Firestone Air Ride Bags 0FD 200-19 504 Contitech Rubber Convoluted Air Spring W01-358-6926 Firestone Air Ride Bags 1
