Product Description

Suspension Air Shock Technical Parameter

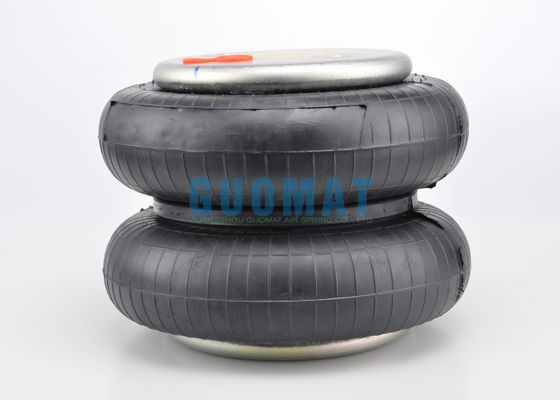

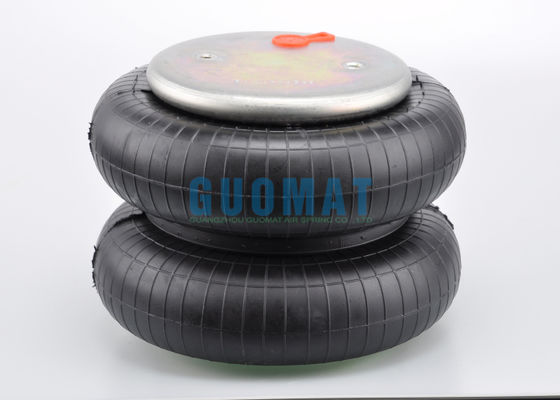

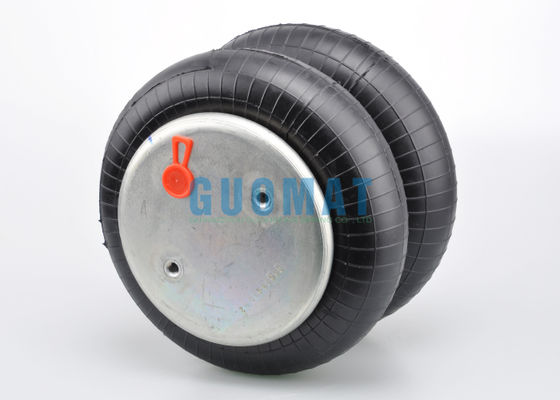

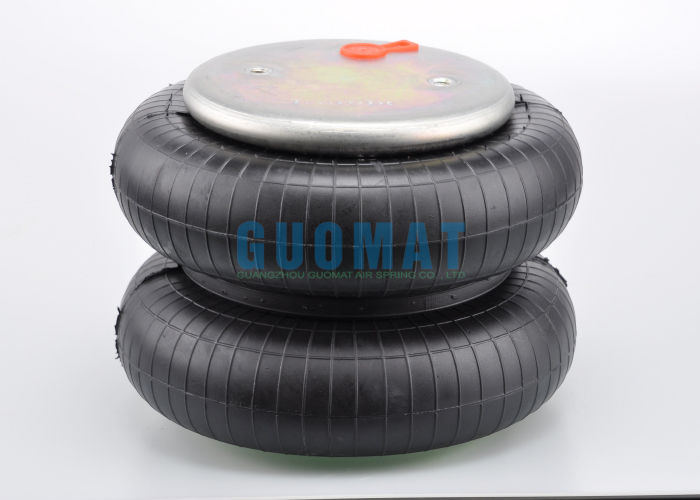

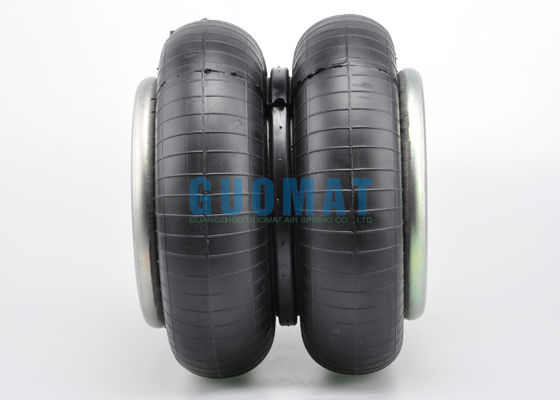

2B6951 is a double convoluted type air spring. The top and bottom cover plates have a diameter of 160mm. The top cover plate has two 3/8-16UNC threaded holes and one 1/4NPTF air hole. The center distance between the two threaded holes is 89mm, and the distance between the threaded holes and the air hole is 44mm. The center distance between the threaded holes on the bottom is 89mm. The natural outer diameter of the rubber air bag is 232.5mm. The design height is 240mm.

Firestone Style 20-2

Firestone W01-358-6951,Bind nuts,1/4NPT

Firestone W01-358-6947,Bind nuts,1/4NPT,rubber bumper

Firestone W01-358-6952,Bind nuts,3/4NPT

Firestone W01-358-7789,Countersunk steel bead rings, 1 3/4 bolt,nuts,washers

Firestone W01-358-0305,Rubber bellows only

Application of Air Springs

Construction machinery: shock absorption and precision protection
Construction machinery (such as cranes, excavators, concrete pump trucks) are subjected to severe vibrations during operation, which may damage the precision hydraulic system or affect the positioning accuracy. Air suspension absorbs impact energy by dynamically adjusting the air pressure.

Typical applications
- All-terrain cranes: When the telescopic arm is operating, the air suspension offsets the load swing and improves the hoisting stability.
- Mining dump trucks: Protect the chassis and electronic control system under heavy load and bumpy road conditions.
- Technical advantages:
- Actively adjust stiffness/damping to adapt to different working conditions (such as the travel vs. operation mode of the excavator).
- Reduce the vibration transmitted from the equipment to the ground, meeting the requirements of environmental protection construction (such as nighttime operation in the city).

2. Agricultural machinery: terrain adaptation and driving comfort
Large agricultural machinery (such as tractors with more than 300 horsepower and combine harvesters) needs to reduce the body tilt in soft or uneven farmland to avoid driver fatigue and protect crops.

Typical applications
- High-clearance sprayers: air suspension maintains constant ground clearance to prevent crops from being crushed.
- Sugarcane harvesters: automatic leveling when working on slopes to reduce sugar loss.
- Technology extensions:
- Combine GPS with terrain pre-scanning system to pre-adjust suspension parameters (such as John Deere's "AutoTrac" system).
- Suspended cabs further isolate high-frequency vibrations (such as Kubota harvesters).
