FD 200-19 510 Firestone Suspension Air Bags 2B9-245 Goodyear Convoluted Rubber Bellows

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B7788

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Model Name:	Suspension Air Spring	Warranty:	1 Year
Material:	Natural Rubber And Aluminum Cover	Package:	Carton/Cartons
Color:	Black	Cross Reference:	Goodyear 2B9-245
Firestone:	W01-358-7788	Maximum Height:	274mm
Highlight:	Firestone suspension air bags , Goodyear convoluted rubber bellows , 510 Firestone air spring

FD 200-19 510 Firestone Suspension Air Bags 2B9-245 Goodyear Convoluted Rubber Bellows

Product Description

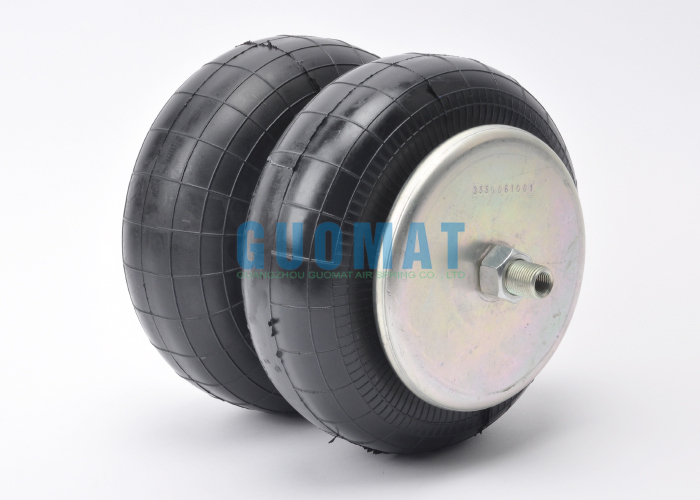

The GUOMAT 2B7788 is a high-performance air spring designed to replace Goodyear 2B9-245 models. Utilizing high-quality rubber and high-strength cord, it offers exceptional durability, sealing, and fatigue resistance, effectively filtering road vibrations and enhancing ride comfort and vehicle stability. Easy to install, it's an ideal repair and upgrade for suspension systems on commercial trucks, buses, and other vehicles.

Compatibility

GUOMAT Number: 2B7788
Compatible with Goodyear: 2B9-245 / 2B 9-245
Compatible with Goodyear: 578923202 / 578-92-3-202 / 578 92 3 202
Compatible with Contitech: 64519
Compatible with Contitech: FD200-19 510 / FD 200-19 510
Compatible with Contitech: 7788
Compatible with Contitech: W01-358-7788 / W01 358 7788 / W013587788
Compatible with Automann: ABSP2B12R-7788
Compatible with Triangle: 4510
Compatible with Watson&Chalin: AS-0088

Technical Data

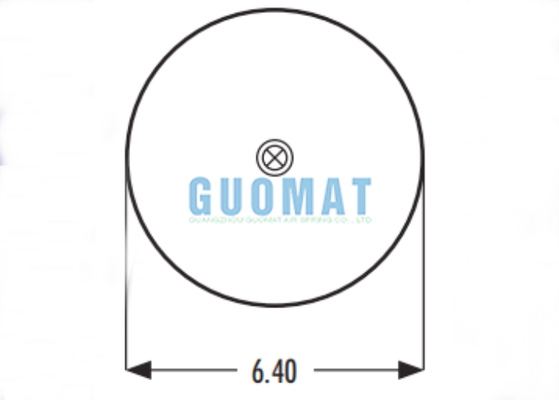

1. Top cover diameter: 160mm

2. Bottom cover diameter: 160mm

3. Center-to-center distance between bottom threaded holes: 89mm

4. Maximum outer diameter: 251.5mm

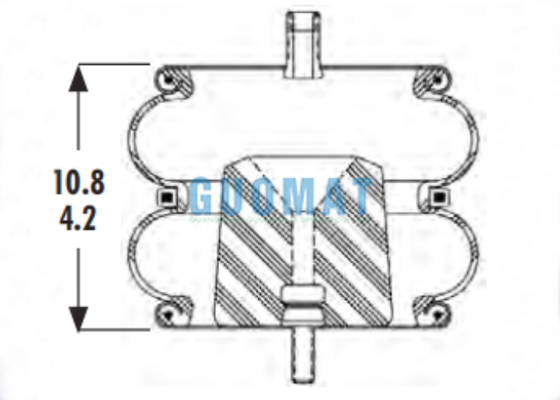

5. Maximum height: 274mm

6. Minimum height: 95mm

About Shipping

(1) Your goods will be shipped within 1-7 days after payment. We will use fast and secure express delivery methods such as DHL, TNT or FEDEX, and it will take about 5-10 days to reach most countries/regions in the world.

(2) We hope that the goods will be delivered on time, but since this is an international delivery, the actual delivery time depends on the logistics company and local customers.

(3) For any problems caused by the shipping service, such as accidents, delays or other problems, we will actively handle it for you.

(4) Any import fees are borne by the buyer.

GUOMAT Other Air Spring Models

Firestone	Contitech	Goodyear	Phoenix
W01-M58-6165	FS 120-9
W01-M58-6166	FS 120-9
			SP 1 B 07
W01-358-7731
W01-M58-6374	FS 200-10		SP 1B 12
	FS 70-7		SP 1 B 05
W01-358-7008	FS 330-11 474	1B12-300/313
W01-358-7009	FS 330-11 468	1B12-301/578913301
W01-358-6994/19	FS 330-11 647
	FS 40-6 1/8 M8		SP1B04
W01-358-7564	FS120-10	1B8-550
W01-358-6932	FD 200-19 452	2B9-246
W01-358-6935	FD 200-19 499	2B9-201
W01-358-6940	FD 200-19 450	2B9-230
W01-358-6941	FD 200-19 448	2B9-265/280
W01-358-6949	FD200-19506
W01-358-7788	FD 200-19 510	2B9-245
