EB-250-85 Festo Bellows cylinder 9''1/4x1 S09101 Dunlop Suspension Air Shock Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B20010-G3/4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Quality:	100 % Tested	Purpose:	Reduce Shock
After-sales Service:	12 Months	Festo:	EB-250-85
Port Size:	G3/4	Contitech:	FS200-10
Firestone:	W01-M58-6374	Phoenix:	SP1B12
Highlight:	Festo bellows cylinder suspension air spring , Dunlop suspension air shock spring , 9 1/4x1 air spring cylinder

EB-250-85 Festo Bellows cylinder 9''1/4x1 S09101 Dunlop Suspension Air Shock Spring

EB-250-85 Festo Bellows cylinder 9 ''1/4x1 S09101 Dunlop Suspension Air Shock Spring

Product Details

The suspension air spring is an automobile suspension component that uses compressed air to form an elastic body in a closed airbag to replace the traditional steel coil spring.

Brand: GUOMAT
Model No.: 1B20010-G3/4
Material: Rubber and Steel
Warranty: 12 Months
Condition: Brand New

EB-250-85 Festo Data Sheet

Size: 250

Required installation diameter: 265 mm

Stroke: 85 mm

Max. extended height: 140 mm

Max. angle of inclination: 20 deg

Max. offset: 10 mm

Min. installation height: 51 mm

Mode of operation: Single-acting

Symbol: 00991205

Operating pressure: 0 bar ... 8 bar

Note on operating and pilot medium: Lubricated operation not possible

Corrosion resistance class CRC: 2 - Moderate corrosion stress

LABS (PWIS) conformity: VDMA24364-B1/B2-L

Ambient temperature: -40 °C ... 70 °C

Reset force: 200 N

Product weight: 2300 g

Type of mounting: Via female thread

Pneumatic connection: G3/4

Note on materials: RoHS-compliant

Material bellows: NR/BR

Material housing: Steel, Galvanised

GUOMAT 1B20010-G3/4 can Replace the following Numbers

Firestone Part Number: W01-M58-6374
Firestone Part Number: W01 M58 6374
Firestone Part Number: W01M586374
Contitech Part Number: FS200-10
Contitech Part Number: FS 200-10
Phoenix Part Number: SP1B12
Phoenix Part Number: SP 1B 12
Dunlop(FR) Part Number: 9'' 1/4x1 S09101
Bosch Part Number: 822419004
Festo Part Number: EB-250-85
Norgren Part Number: PM/31091 )81/4X1

Firestone Models of Similar Size

Style	Part Number	Description
115	W01-M58-6375	Blind nuts, 1/4 BSP
115	W01-M58-6376	Blind nuts, 1/4 BSP rubber bumper
115	W01-M58-6374	Blind nuts, 3/4 BSP
115	W01-M58-6977	Countersunk steel bead rings, 40 mm bolts, nuts, washers
115	W01-358-0118	Rubber bellows only
124	W01-M58-6181	Blind nuts, 1/4 BSP
124	W01-M58-6182	Blind nuts, 3/4 BSP

Main Components

Air Bellows: The core component, made of a high-strength, fatigue-resistant flexible material, holds the compressed air and expands and contracts with pressure changes.
Piston: Located below the air bellows, its shape is specially designed to guide the air bellows' shape changes during compression and expansion, thereby precisely controlling the suspension's spring characteristics (progressive or linear).
End Caps: The upper and lower fixed ends of the air bellows, used to connect the air spring to the vehicle frame and suspension arm.

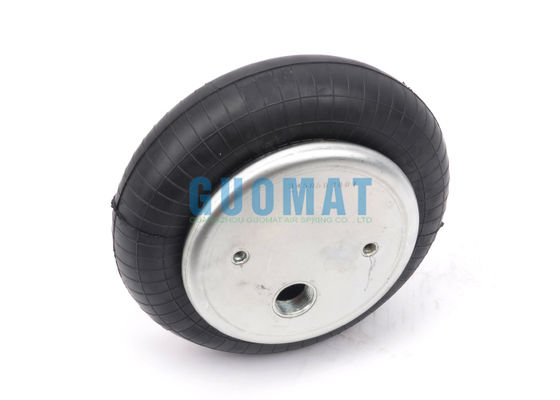

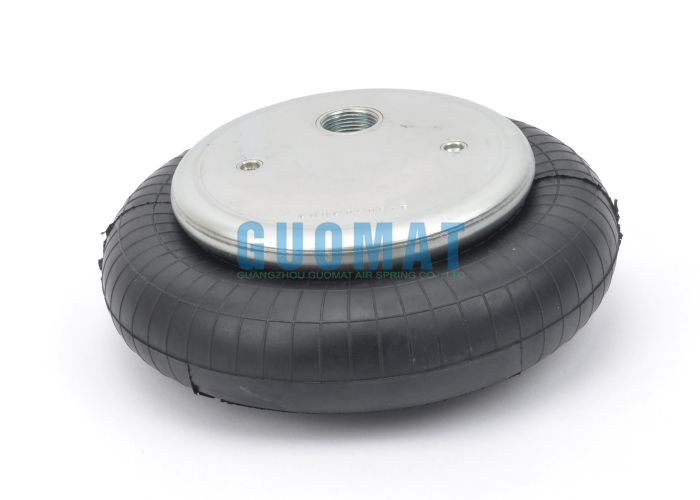

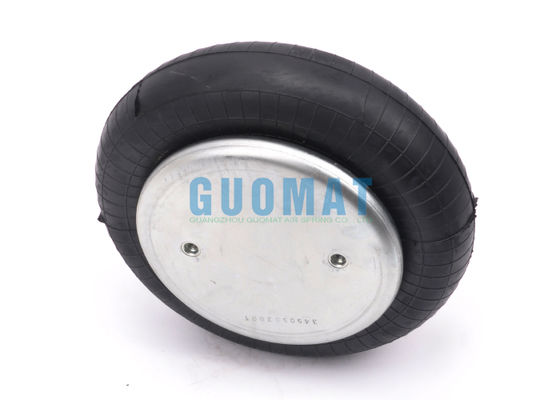

Related Pictures of 1B20010-G3/4
