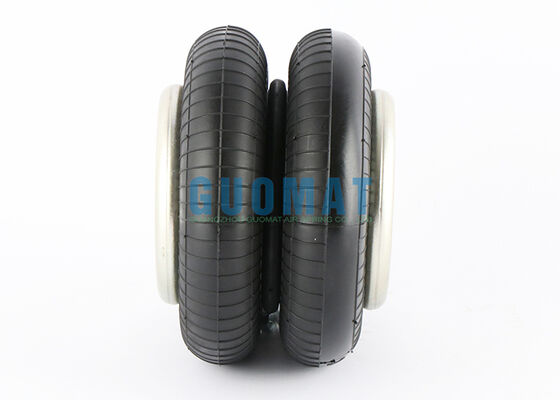

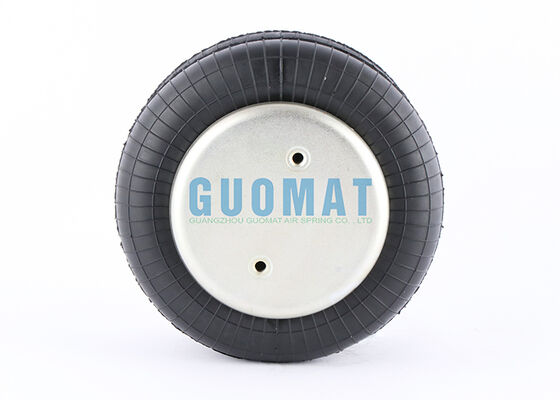

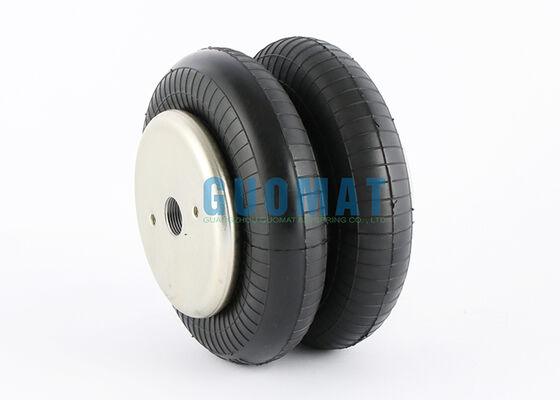

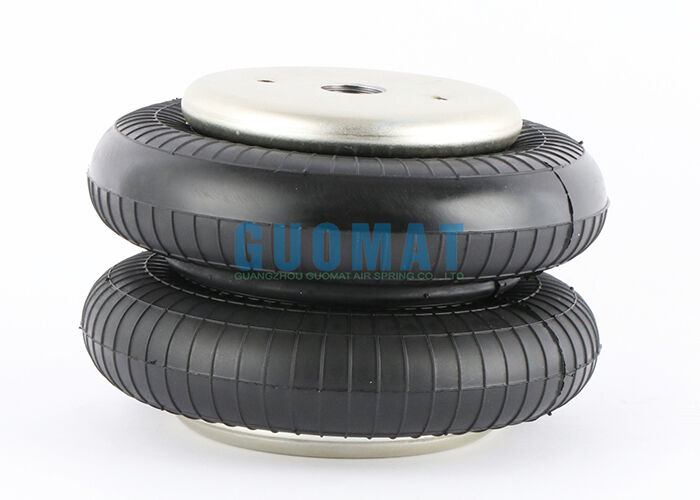

FD 120-17 Contitech Suspension Air Spring 2B-181/113053 Airkraft Air Shock Absorber

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B12017

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product Name:	Suspension Air Spring	Quality:	100 % Tested
Transport Package:	Strong Cartons	After-sales Service:	12 Months
Type:	Gas-Filled	Color:	Black
Contitech:	FD 120-17	MOQ:	4PCS
Highlight:	Contitech suspension air spring , Airkraft air shock absorber , 2B-181 air spring replacement

FD 120-17 Contitech Suspension Air Spring 2B-181/113053 Airkraft Air Shock Absorber

Air suspension springs are rubber airbags that use compressed air as the working medium, replacing traditional steel springs in vehicle damping systems.

Height Adjustability: By inflating and deflating the airbag, the vehicle's height and ground clearance are automatically adjusted.
Adaptive Stiffness: Air pressure automatically changes with load, maintaining the same cushioning effect whether fully loaded or unloaded.
Active Control: Working with sensors and electronic control systems, it can adjust the stiffness mode in real time (such as switching between sport and comfort modes).

Brand: GUOMAT

Model Number: 2B12017

Material: Rubber and Steel

Warranty: 12 Months

Compatible Replacement Parts

Contitech: FD120-17
Contitech: FD 120-17
Contitech: FD120-17 CI
Contitech: FD 120-17 CI
Contitech: FD120-17 CI G3/4
Contitech: FD 120-17 CI G3/4
Airkraft: 113053
Airkraft: 2B-181

Specifications and Detailed Technical Parameters

Nut/Blind Nut

Top plate screw (nut) teeth: 2XM8×1.25

Screw center distance of the top cover plate: 70mm

Screw (nut) teeth of the bottom cover plate: 2XM8×1.25

Screw center distance of the bottom cover plate: 70 mm

Air Hole/Air Inlet/Air Fittings

Air hole/air inlet: G3/4

Screw center distance between the air hole and the nut: 35mm

Cover Plate

Top plate diameter: 135 mm

Diameter of the bottom cover: 135mm

Bellows Rubber Bellows

Maximum diameter of rubber bellows: 215 mm

Working stroke: minimum 75 mm to maximum 230 mm

Maximum height: 230mm

Minimum height: 75mm

Stroke height: 155mm

Bumper Block

Without bumper block

Belt Loop/Girdle Hoop/Girdle Ring

Without belt loop/girdle hoop/girdle ring

Pressure P \| Bar	3	4	5	6	7	8	Vol.V(I)
Height H (mm) \| 200	3.4	4.75	5.9	7.25	8.5	9.7	4
180	4.18	5.65	7.05	8.6	10.1	11.5	3.6
160	4.9	6.5	8.13	9.85	11.5	13.1	3.3
140	5.48	7.24	9.05	10.9	12.7	14.5	3
120	5.98	7.93	9.9	11.9	13.9	15.8	2.7
100	6.43	8.54	10.7	12.9	15.1	16.9	2.3
80	6.8	9.05	11.3	13.7	15.9	17.9	2
