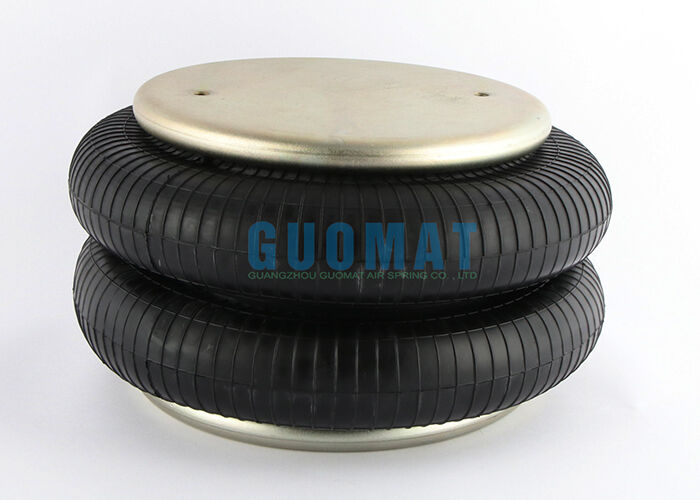

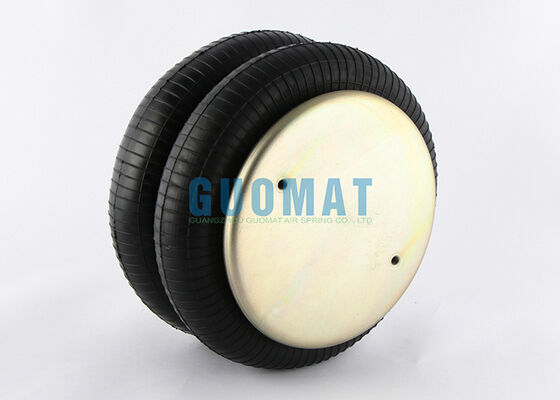

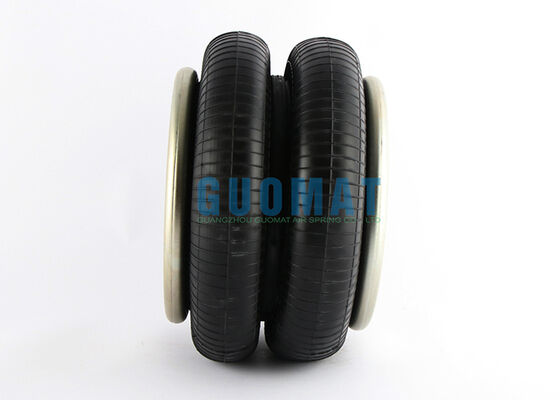

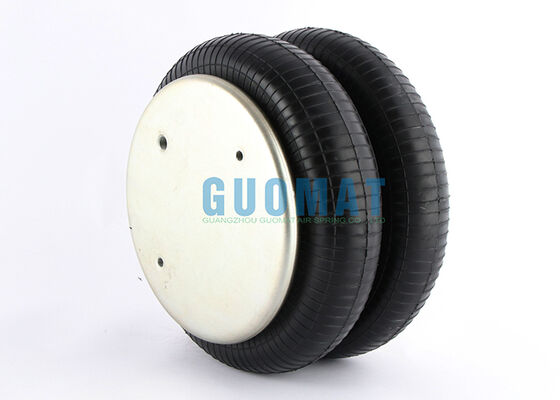

Light Truck Suspension Air Shock W01-358-6956 Firestone Double Convoluted Air Spring

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6956

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Name:	Suspension Air Bags	Quality:	100 % Tested
Transport Package:	Strong Cartons	After-sales Service:	12 Months
Type:	Gas-Filled	Color:	Black
Position:	Rear	Usage:	For AMERICAN Truck
Highlight:	Light Truck Air Spring Suspension , Firestone Double Convoluted Air Spring , W01-358-6956 Air Shock

Light Truck Suspension Air Shock W01-358-6956 Firestone Double Convoluted Air Spring

Brand: GUOMAT
Model Number: 2B6956
Material: Rubber and Steel
Warranty: 12 Months
Type: Suspension Spring
Car Model: AMERICAN PICK-UP
Position: Rear
Sample: Available
Payment Term: T/T
Operation: Gas-filled
Port: Guangzhou

OEM Number

Firestone Air Spring: W01-358-6956
Firestone Air Spring: W01 358 6956
Firestone Air Spring: W013586956
Firestone Air Spring: WO1-358-6956
Firestone Air Spring: WO1 358 6956
Firestone Air Spring: WO13586956

Blind nuts, 1/4 NPT
W01-358-6955 / W01 358 6955 / W013586955

Blind nuts, 3/4 NPT
W01-358-6956 / W01 358 6956 / W013586956

Rubber bellows only
W01-358-0048 / W01 358 0048 / W013580048

Socket head aluminum bead rings (bolts, nuts, washers not included, use cap screws)
W01-358-6833 / W01 358 6833 / W013586833

Technical Data

Specification	Value
Maximum Diameter @ 100 PSIG (inches)	6.5
Maximum Height (inches)	7
Maximum Stroke (inches)	4
Minimum Usable Height (inches)	3
Force @ 80PSI at Stroke of 1 Inch (pounds)	1612
Force @ 80PSI at Stroke of 3 Inch (pounds)	1194
Force @ 80PSI at Stroke of Maximum Stroke (pounds)	921
Bead plate Type	1
Blind Nut Centers (inches)	1.75
Design Height	6
Load (at Design Height) at: 40 psig (pounds)	566
Load (at Design Height) at: 60 psig (pounds)	871
Load (at Design Height) at: 80 psig (pounds)	1194
Natural Frequency (@80 psig) (cpm)	129
% of Isolation at Forced Frequency 400 CPM	87.9
% of Isolation at Forced Frequency 800 CPM	97.2
% of Isolation at Forced Frequency 1500 CPM	99.2

Advantages of Installing Air Springs in Truck Suspension

Cargo Protection: Excellent shock absorption significantly filters road impacts, greatly reducing damage to high-end goods such as precision instruments and fragile items during transport.
Enhanced Safety: Improves vehicle stability and shortens braking distance. Automatically maintains vehicle height, ensuring good visibility and maneuverability whether empty or heavily loaded.
Efficient Operation: Automatic vehicle height adjustment facilitates quick and easy docking at loading docks, greatly improving loading and unloading efficiency. The system is also lighter, contributing to increased payload capacity.
Economical and Durable: Effectively protects the vehicle chassis, extending its service life. More importantly, it promotes more even tire wear, significantly extending tire life and saving long-term operating costs.
