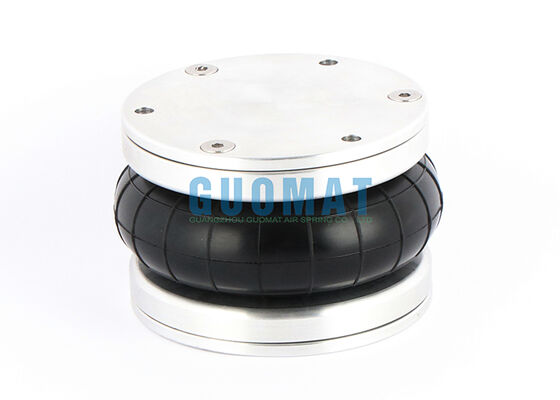

4½" x 1 DUNLOP Air Suspension Air Bag SP2334 FS 44-5 DI Contitech Air Spring For Tractors

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B4.5X1P

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Name:	Suspension Air Spring	Material:	Rubber Bellow And Aluminum Cover
Warranty:	1 Year Warranty	Package:	Standard Packing Or Customized
Type:	Singe Convoluted Air Spring	Dunlop:	4½" X 1 / SP2334
Contiteh:	FS44-5	Application:	For Tractors
Highlight:	DUNLOP air suspension air bag , Contitech air spring for tractors , SP2334 tractor air spring

4½" x 1 DUNLOP Air Suspension Air Bag SP2334 FS 44-5 DI Contitech Air Spring For Tractors

Product Overview

Item: Air Suspension Spring

Brand: GUOMAT

Model Number: 1B4.5X1P

MOQ: 3 Pieces

Warranty: 12 Months

Material: Natural Rubber

Operation: Gas-filled

Packing: Strong Carton Box Or As Customers Need

Quality: 100% Tested

Payment: T/T, Trade Assurance, Paypal, Western Union

Shipping: Sea transportation, TNT, DHL, UPS, FedEx, EMS, etc.

Cross-Reference Part Numbers

Continental ContiTech:

FS 44-570205
FS 44-5 DI CR 70205
FS 44-5 G3/8 M6
FS 44-5 DI CR G3/8
FS 44-5 DI CR G3/8 M6
FS 44-5 DI G3/8 CR
FS 44-5 DI CR / FS44-5DICR / FS445DICR
ContiTech Bellows: FS 44-5 / FS44-5 / FS445

Firestone:

W01-R58-4050
W01 R58 4050
W01R584050

Firestone Style:

4½" × 1
4½" X 1
4½ × 1

Dunlop:

FR: 4½" × 1 SP2334
UK (Pneuride): PNP30559 01 06 / PNP305590106

Norgren:

M/31041
M 31041
M31041

Parker:

9109400

Technical Parameters

Parameter	Value
Maximum Working Pressure	7Bar
Top & Bottom Plates	15°
Maximum Axial Offset	10mm
Maximum Diameter	125mm
Space Required	140mm
Minimum Height	45mm
Maximum Height	90mm
Total Stroke	45mm
Static Height	65mm
Effective Area at Static Height	65cm²
Bellows Weight	0.75kg

Tractor Applications

GUOMAT No. 1B4.5X1P air springs are widely used in tractor suspension and cab damping systems to improve overall ride comfort and operational stability. This model effectively absorbs shocks and vibrations from rough roads and farmland operations, reducing the impact on the vehicle body and driver.

This air spring uses high-strength rubber and a reliable structural design, possessing excellent load-bearing capacity and durability, suitable for long-term, high-intensity agricultural operating environments. Furthermore, the GUOMAT No. 1B4.5X1P can directly replace Dunlop 4½" × 1 air springs, offering excellent compatibility in installation dimensions and performance without requiring modifications to the existing structure.

Application Advantages
