Contitech FD 40-10 Double Convoluted Air Spring G1/8 Air Fitting Air Brake Suspension System

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B4060

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Material:	Made Of High Quality Rubber And Steel	Warranty:	12 Months
Sample:	Available	Operation:	Gas-filled
Other Name:	Double Convoluted Rubber Air Spring	Contitech:	FD40-10
Type:	Double Convoluted	Color:	Black
Highlight:	Contitech FD 40-10 air spring , double convoluted air suspension , G1/8 air brake fitting

Contitech FD 40-10 Double Convoluted Air Spring G1/8 Air Fitting Air Brake Suspension System

Product Overview

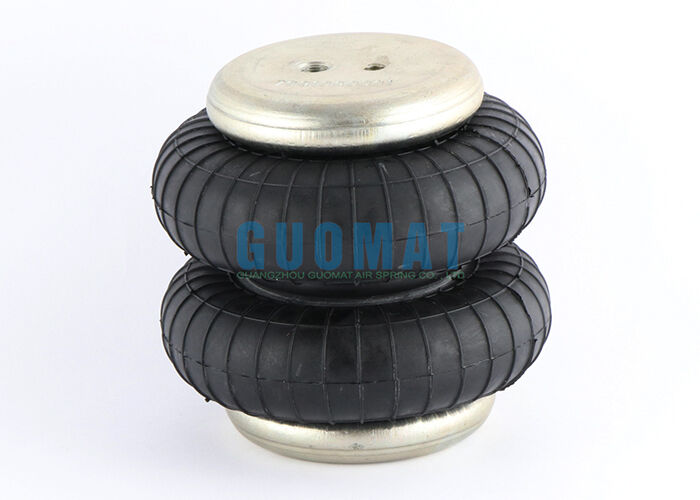

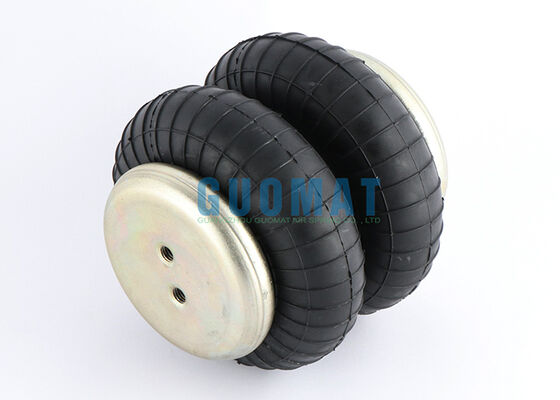

GUOMAT 2B4060 is a double convoluted air spring designed as a reliable replacement for Contitech FD 40-10, widely used in air brake and suspension systems. Equipped with a G1/8 air fitting, this air spring provides stable load support, responsive air control, and effective vibration isolation in compact installation environments.

Product Specifications

Type Name: Double Convoluted Bellows Air Spring
Warranty: 12 Months
Airspring Supplier: Contitech
Competitor/Supplier Number: FD40-10
Brand: GUOMAT/Neutral
MOQ: 1 PCS
Package Options: Bubble bag and brown carton, Custom packaging, Normal exported package
Delivery Time: 2-8 working days after payment receipt
After Service: Examination before shipment, Customer feedback follow-up

Alternative Part Numbers

ContiTech: FD 40-10 CI G1/8
ContiTech: FD 40-10 C12682 001000
ContiTech: FD 40-10 CI G1/8 M8
ContiTech: FD 40-10 1/8 M8
ContiTech Bellow: FD 40-10/FD 40 10/FD4010
Festo: EB-145-100/EB 145 100/EB145100

Key Features & Advantages

Double Convoluted Design: Provides balanced load distribution and stable vertical movement under dynamic working conditions
G1/8 Air Fitting Interface: Ensures quick air connection and precise pressure adjustment for suspension and brake systems
High-Strength Rubber Construction: Manufactured with reinforced rubber compound to resist fatigue, wear, and repeated compression
Reliable OEM Replacement: Designed to match the performance and installation requirements of Contitech FD 40-10
Smooth Operation & Low Noise: Reduces vibration transmission and mechanical stress, improving overall system durability

Compatible Models

Model	Gas Hole	Screw Tooth	Rubber Bellow (mm)	Cover Plate (mm)
FS 76-7 DS CR	G1/2	M10	175	153.5
FS 210-10 DS	G1/2	M10	270	210
FS 412-10 DS	G1/2	M10	330	260
FS 614-13 DS	G1/2	M10	400	310
FS 816-15 DS	G1/2	M10	420	310
FD 76-14 DS CR	G1/2	M10	175	153.5
FD 138-18 DS	G1/2	M10	225	184
FD 209-21 DS	G1/2	M10	255	197
FD 210-22 DS	G1/2	M10	270	210
FD 412-18 DS	G1/2	M10	325	260
FD 614-26 DS	G1/2	M10	400	310
FD 816-30 DS	G1/2	M10	435	310
FT 76-20 DS CR	G1/2	M10	178	153.5
FT 138-26 DS	G1/2	M10	230	184
FT 210-32 DS	G1/2	M10	270	210
