W01-358-6994 Firestone Suspension Air Spring Style 19 Single Convoluted Rubber Spring Bags

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B6994

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Model:	Suspension Air Spring	Material:	Rubber+Steel
Warranty:	12 Months Warranty	Operation:	Gas-Filled
Usage:	Car,Truck,Trailer,etc.	Firestone:	W01-358-6994
Contitech:	FS 330-11 647	Color:	Black
Highlight:	Firestone single convoluted air spring , Suspension air spring rubber bags , Firestone Style 19 air spring

W01-358-6994 Firestone Suspension Air Spring Style 19 Single Convoluted Rubber Spring Bags

Product Specifications

Model: Suspension
Brand: GUOMAT
Model Number: 1B6994
Convolutions: 1
Warranty: 12 Months
Material: Rubber and Steel

Replacement Part Numbers

Firestone: W01-358-6994, W01 358 6994, W013586994, 19
Contitech: FS330-11 647, FS 330-11 647
Triangle: 6374, 4467

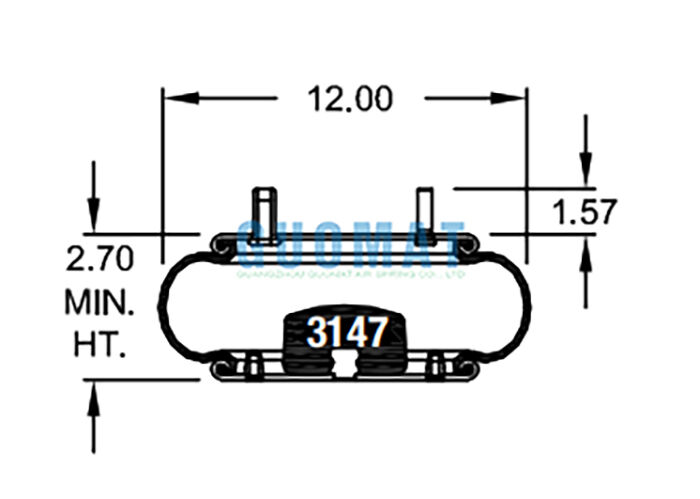

Technical Specifications

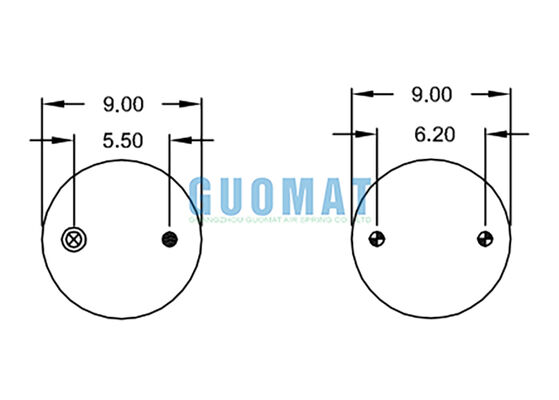

Top cover diameter: 231mm
Center distance between threaded holes on top cover: 157mm
Center distance between bottom cover threaded holes: 157mm
Maximum outer diameter of air spring: Max. 325mm
Stroke: minimum 60mm - maximum 160mm

Cross-Reference Compatibility

Firestone Style	Firestone Number	OEM
19	W01-358-6994	Capacity of Texas
19	W01-358-7008	Holland (Neway) 90557226
19	W01-358-7009	Holland (Neway) 90557002

Installation & Usage Notes

Install on clean, aligned mounting surfaces. Adjust air pressure according to application load. Inspect air lines and fittings during routine maintenance.

Shipping & Packaging

Each air spring is securely packed in protective inner packaging and export-grade cartons to prevent damage during transportation. Bulk orders can be palletized for efficient global delivery.
