Firestone W01-358-7025 Double Convoluted Suspension Air Spring Style 268 Rubber Air Shock

Firestone W01-358-7025 Double Convoluted Suspension Air Spring Style 268 Rubber Air Shock

  • Firestone W01-358-7025 Double Convoluted Suspension Air Spring Style 268 Rubber Air Shock
  • Firestone W01-358-7025 Double Convoluted Suspension Air Spring Style 268 Rubber Air Shock
  • Firestone W01-358-7025 Double Convoluted Suspension Air Spring Style 268 Rubber Air Shock
  • Firestone W01-358-7025 Double Convoluted Suspension Air Spring Style 268 Rubber Air Shock
Firestone W01-358-7025 Double Convoluted Suspension Air Spring Style 268 Rubber Air Shock
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B7025
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: $59.9-69.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Product Name: Suspension Air Spring Warranty: 12 Months
Material: Rubber + Steel MOQ: 10 Pieces
Weight: 1.7kg Stock: In Stock
Firestone: W01-358-7025 Other Name: Rubber Air Bellows
Highlight:

Firestone double convoluted air spring

,

suspension air shock with rubber

,

air spring style 268

Firestone W01-358-7025 Double Convoluted Suspension Air Spring Style 268 Rubber Air Shock
Product Overview

The GUOMAT G7025 Double Convoluted Air Spring is a high-performance rubber air suspension component designed as a direct replacement for Firestone W01-358-7025. This air spring is engineered to provide excellent load support, vibration isolation, and suspension stability, making it suitable for demanding truck, trailer, and industrial suspension applications.

With its double convoluted structure, the G7025 delivers enhanced vertical flexibility and consistent performance across a wide operating range, even under heavy loads and harsh road conditions.

Product Specifications
  • Item Name: Air Suspension Spring
  • Brand: GUOMAT/Neutral
  • Model Number: 2B7025
  • Type: Air Suspension Assembly
  • Material: Rubber and Steel
  • Warranty: 1 Year
  • MOQ: 1 Piece
  • Color: Black
  • Origin: Mainland China
  • Size: Manufactured to Standard Specifications
Cross-Reference Part Numbers
  • FIRESTONE W01-358-7025
  • FIRESTONE W01 358 7025
  • FIRESTONE W013587025
  • FIRESTONE Style 268
Technical Data

Top Cover Plate: Diameter of 111mm, 2 x 3/8-16 UNC threaded holes, 1/4-18 NPTF vent holes, and a center distance of 44mm between the threaded holes.

Bottom Cover Plate: Diameter of 111mm, 2 x 3/8-16 UNC threaded holes, and a center distance of 44mm between the threaded holes.

Dimensions: Natural outer diameter: 146mm, Maximum outer diameter: 165mm, Maximum height: 175mm, Minimum height: 65mm.

Assembly Height (in.) Volume @ 100 PSIG (in³) Pounds Force @20 PSIG @40 PSIG @60 PSIG @80 PSIG @100 PSIG
5.0 78 300 590 890 1210 1540
4.0 60 380 720 1080 1450 1810
3.0 39 420 800 1220 1640 2060
Related Part Numbers
  • Blind nuts, 1/4 NPT: W01-358-7025 / W01 358 7025 / W013587025
  • Blind nuts, 3/4 NPT: W01-358-7047 / W01 358 7047 / W013587047
  • Blind nuts, 1/4 NPT both ends: W01-358-7035 / W01 358 7035 / W013587035
  • 3/4 NPT both ends (no blind nuts): W01-606-7025 / W01 606 7025 / W016067025
  • Socket head aluminum bead rings: W01-358-0030 / W01 358 0030 / W013580030
  • Rubber bellows only: W01-358-0319 / W01 358 319 / W01358319
Product Images

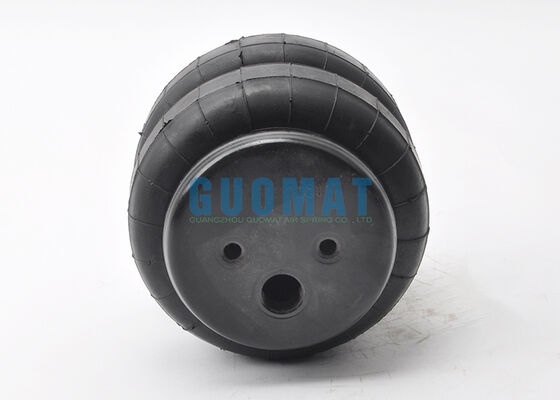

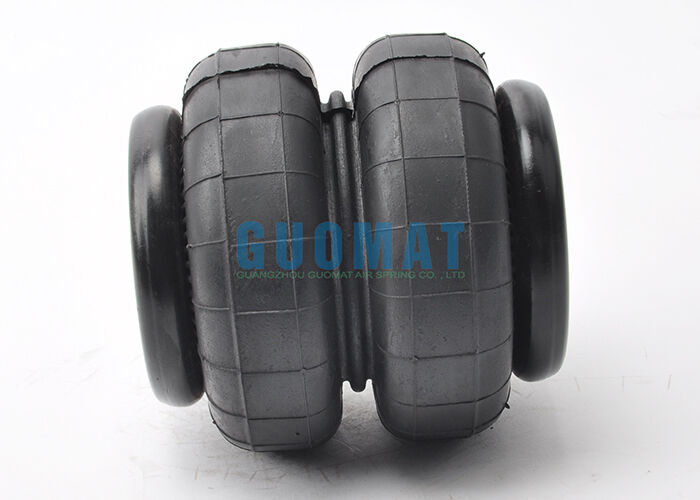

Firestone W01-358-7025 Double Convoluted Suspension Air Spring Style 268 Rubber Air Shock 0 Firestone W01-358-7025 Double Convoluted Suspension Air Spring Style 268 Rubber Air Shock 1
