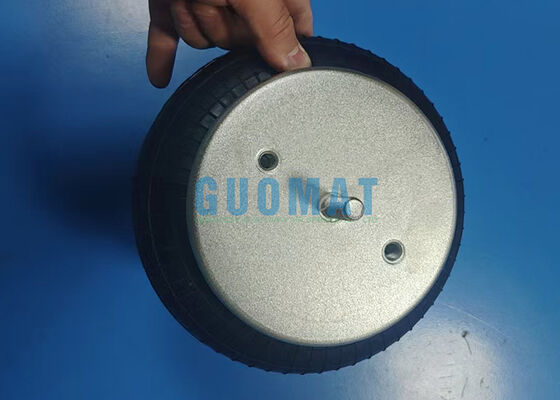

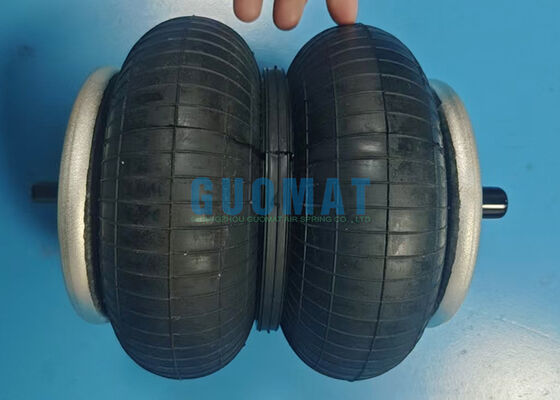

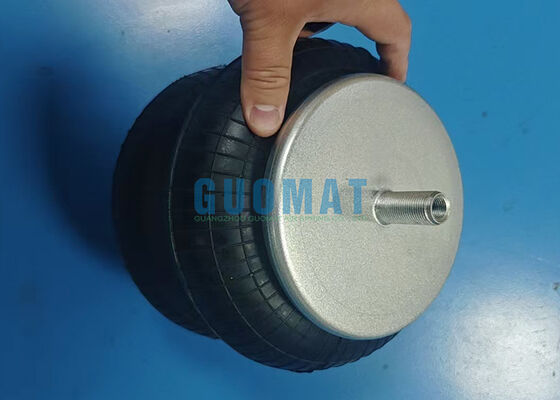

W01-358-7788 Firestone Load Capacity Rubber Air Spring 2B9-245 Goodyear Air Bag Suspension

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B7788

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Type:	Air Bag Suspension	Pressure Ability:	0.2-0.8 M PA
Transport Package:	Cartons	Warranty:	One Year
Material:	Rubber + Steel	Firestone:	W01-358-7788
Contitech:	FD 200-19 510	Convolutions:	2
Highlight:	Firestone air spring load capacity , Goodyear air bag suspension , rubber air spring 2B9-245

W01-358-7788 Firestone Load Capacity Rubber Air Spring 2B9-245 Goodyear Air Bag Suspension

Product Specifications

Type	Suspension Air Spring
Brand	GUOMAT
Model Number	2B7788
Warranty	12 Months
Delivery	3-7 Working Days After Receiving Payment
Packing	Foam + Carton Packaging

Corresponding OEM Numbers

Firestone W01-358-7788 / W01 358 7788 / W013587788
Contitech FD200-19 510 / FD 200-19 510
Goodyear 2B9-245 / 2B 9-245 / 2B9 245
Goodyear 578-92-3-202 / 578 92 3 202 / 578923202
Triangle 6325 / 4510
Watson & Chalin AS-0088
Watson & Chalin AS-0088G

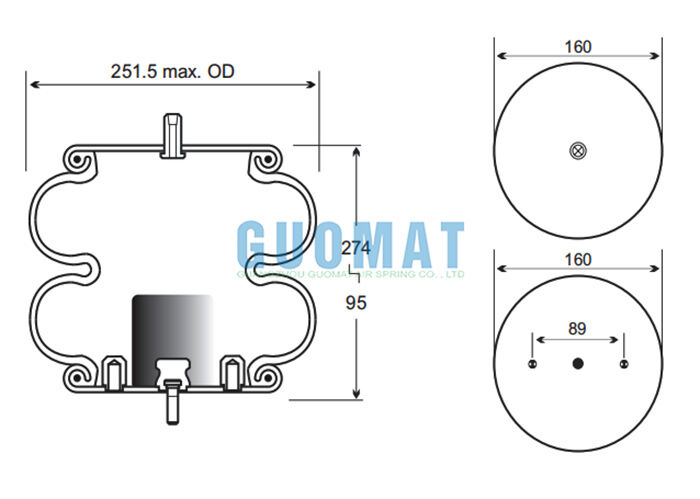

Technical Specifications

Nut / Blind Nut
Screw Center Distance of Bottom Cover Plate	89mm
Cover Plate
Top Cover Plate Diameter (Width)	160mm
Bottom Cover Plate Diameter (Width)	160mm
Rubber Bellows
Rubber Bellows MAX Diameter	251.5mm
Maximum Height	274mm
Minimum Height	95mm
Bumper Block / Buffer Block
With Bumper Block	Yes

Shipping & Logistics

Safe & Professional Packaging

Each GUOMAT air spring is packed with protective inner wrapping and strong export cartons to prevent damage during transportation
For bulk orders, pallet packaging is available to ensure safer loading and unloading
We make sure every product arrives in good condition

Fast & Flexible Delivery Options

We support multiple shipping methods to meet different customer needs:
