FD 200-19 1/4 M10 Contitech Suspension Air Shock 72047 Double Convoluted Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B20019-G1/4M10

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Spring Material:	Natural Rubber	Air Spring Type:	Double Cylinder
Trademark:	GUOMAT	Contitech:	FD200-19
Air Fitting:	1/4NPT	Threaded Hole:	M10
Keywords:	Air Suspension	Meritor:	Meritor
Highlight:	Contitech suspension air spring , M10 double convoluted air spring , FD 200-19 air shock

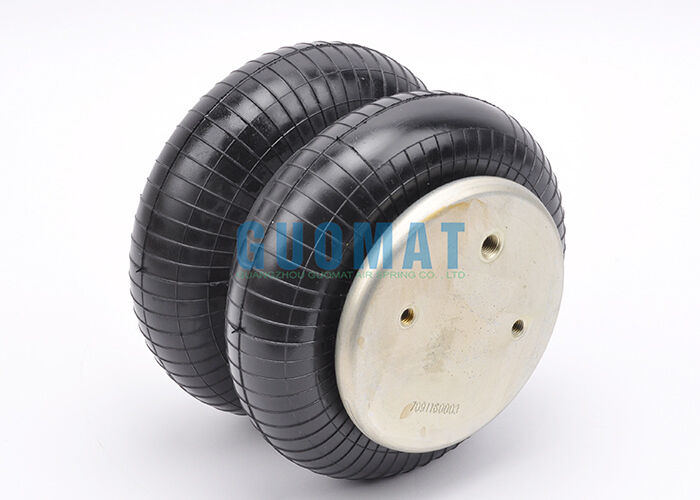

FD 200-19 1/4 M10 Contitech Suspension Air Shock 72047 Double Convoluted Air Spring

Product Overview

GUOMAT 2B20019-1/4M10 Double Convoluted Air Spring is designed as a high-quality replacement for Contitech FD 200-19 72047 suspension air spring. Manufactured with reinforced rubber bellows and precision steel plates, this air spring provides excellent load support, vibration isolation, and long-lasting durability in demanding industrial and suspension applications.

With its double convoluted structure, the air spring delivers stable performance under varying loads while effectively reducing shock and vibration. It is widely used in industrial machinery, vibration isolation systems, pneumatic equipment, and vehicle suspension systems.

Brand: GUOMAT
Model Number: 2B20019-1/4M10
Material: Rubber and Steel
Warranty: 1 Year

OEM Cross-Reference Numbers

Contitech: 72047, FD200-19, FD 200-19, FD200-19 1/4 M10, FD 200-19 1/4 M10
Meritor: 2122 1395, 2122 2663
Granning: 15603, 1371
Floor: 13586

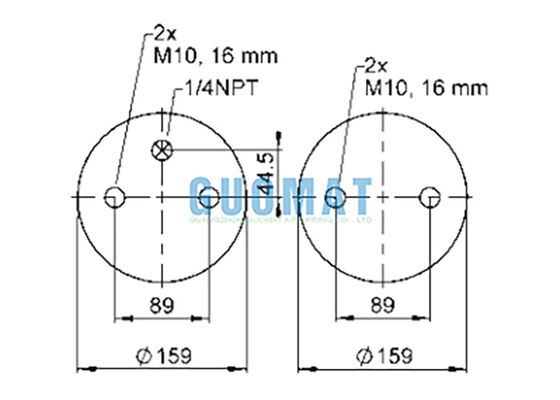

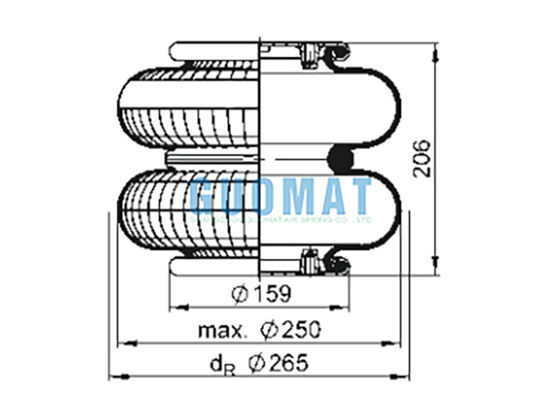

Technical Specifications

Parameter	Specification
Top Plate Diameter	159 mm
Thread Hole Specification	M10
Bolt Center Distance	89 mm
Air Inlet	1/4 NPT
Design Height	206 mm
Maximum Outside Diameter	250 mm

Key Features

Double Convoluted Design: Provides balanced load capacity and flexible movement for various suspension and vibration control systems.
High-Strength Rubber Bellows: Reinforced rubber material ensures durability, pressure resistance, and long service life.
Stable Load Support: Maintains consistent performance under dynamic load conditions.
Precision Mounting Structure: Designed to match standard installation interfaces for convenient replacement.
Wide Application Range: Suitable for industrial equipment, machine foundations, and pneumatic suspension systems.

Common Applications

Application Area	Description
Industrial Machinery	Used in manufacturing equipment and automated production lines to reduce vibration and improve operational stability.
Mechanical Press Machines	Provides controlled force and cushioning in stamping and pressing equipment.
Vibration Isolation Systems	Installed under heavy machines or platforms to absorb shock and reduce transmitted vibration.
Pneumatic Lifting Equipment	Supports lifting tables and adjustable platforms where flexible load support is required.
Vehicle Suspension Systems	Helps improve ride comfort and absorb road shock in trucks, buses, and special vehicles.
Packaging & Processing Machines	Maintains stable operation by minimizing vibration during high-speed mechanical movement.
