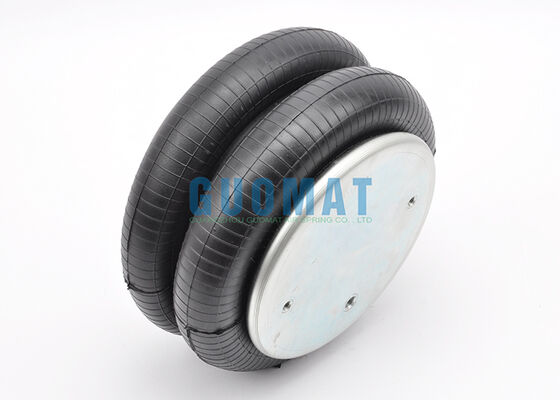

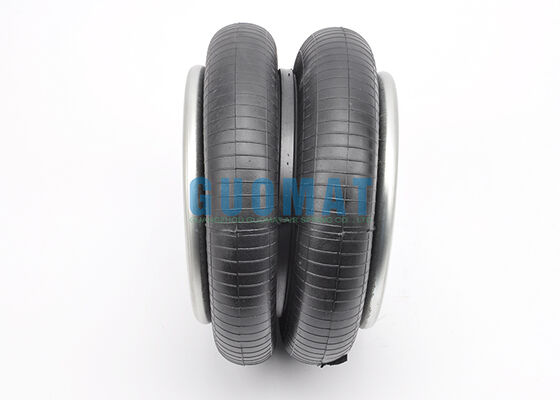

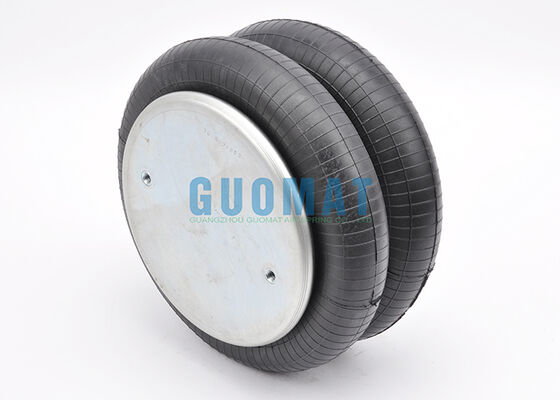

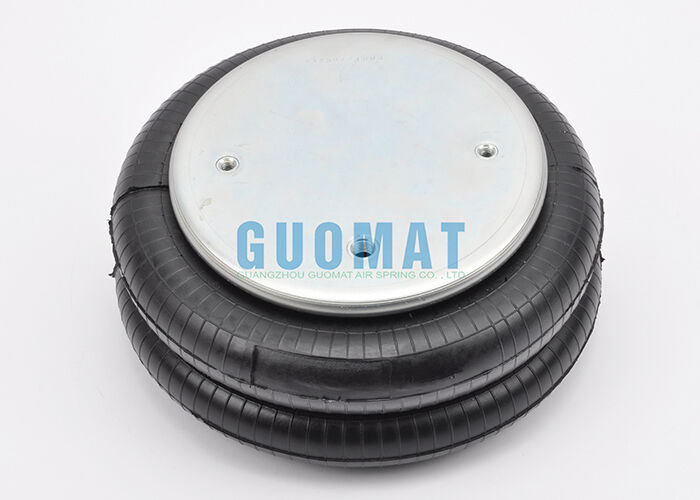

62892 Contitech Rubber Air Suspension FD 200-25 1/4 M10 Double Convoluted Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B200-25

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Suspension	Material:	Rubber+Metal
Warranty:	12 Months	Application:	Truck / Industrial
Contitech:	FD 200-25	Sample:	Available
Operation:	Gas-filled	Directory:	Suspension System
Highlight:	Contitech rubber air suspension spring , Double convoluted air spring M10 , FD 200-25 air spring with warranty

62892 Contitech Rubber Air Suspension FD 200-25 1/4 M10 Double Convoluted Air Spring

Product Overview

Product Name:	Suspension Air Spring
Description:	Truck Spare Parts Air Spring Shock Absorber Spring
Model Name:	2B200-25
MOQ:	1 PCS
Warranty:	12 Months
Material:	Rubber
Package:	Carton
Payment:	L/C T/T West
Port of Shipment:	NINGBO, SHANGHAI, TIANJING, GUANGZHOU, SHENZHEN
Shipment:	By sea, By air, by DHL Fedex

Compatible Part Numbers

Contitech: 62892
Contitech: FD200-25
Contitech: FD 200-25
Contitech: FD200-25 1/4 M10
Contitech: FD 200-25 1/4 M10

Manufacturer	Original Part No.
Meritor	2122 1356
Jost	JAE 20 107 021 01
Jost	2010702101
Daimler TAS	A 946 328 21 01
Weweler	US 07394C
Weweler	US 07394F
Schmitz	016 808
Granning	15670
Weweler	US 07394
Valx	81005002

Technical Specifications

The top cover plate has a diameter of 159mm, with two M10 (16mm) bolts, and a center-to-center distance of 89mm between the bolts. The vent specification is G1/4, and the center-to-center distance between the vent and the threaded hole is 44.5mm.

The bottom cover plate has a diameter of 159mm, with two M10 (16mm) bolts, and a center-to-center distance of 89mm between the bolts.

The maximum outer diameter is 260mm, and the natural height is 256mm.

Vibration Isolation - Dynamic Characteristic Values

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Force (Load) (KN)	6	8.4	10.2	12.3	14.4	16.5	8.8
Spring Rate (N/mm)	73	93	120	139	166	184
Natural Frequency f0 (Hz)	1.8	1.8	1.7	1.7	1.7	1.7

Pneumatic Application - Static Characteristic Values

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Height H (mm) 290	4.12	5.64	7.3	9.03	10.5	12.4	9.4
Height H (mm) 260	5.55	7.34	9.38	11.3	13.4	15.4	8.9
Height H (mm) 230	6.56	8.83	11.1	13.4	15.8	18.1	8.4
Height H (mm) 200	7.5	9.92	12.5	15	17.6	20.2	7.7
Height H (mm) 170	8.28	11	13.8	16.6	19.4	22.2	7
Height H (mm) 140	8.91	11.8	14.8	17.7	20.7	23.6	6.1
Height H (mm) 110	9.3	12.3	15.6	18.7	21.9	24.6	5.1
