FD 330-22 1/1 M8 Contitech Suspension Air Spring 2682060000 Convoluted Type Air Rubber

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B330-22

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product Name:	Industrial Air Spring	Quality:	100 % Tested
Transport Package:	Strong Cartons	After-sales Service:	12 Months
Type:	Gas-Filled	Color:	Black
Contitech:	FD 330-22	MOQ:	5pcs
Highlight:	Contitech M8 suspension air spring , Convoluted type air rubber spring , FD 330-22 air spring with warranty

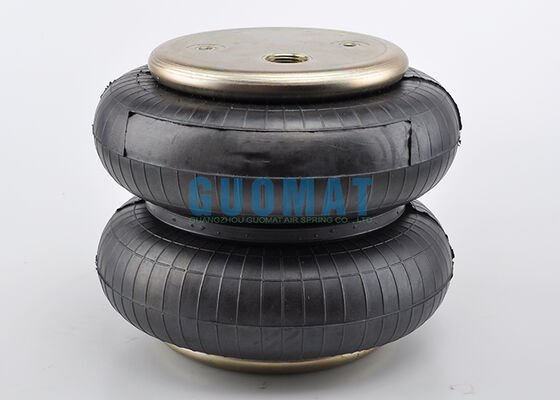

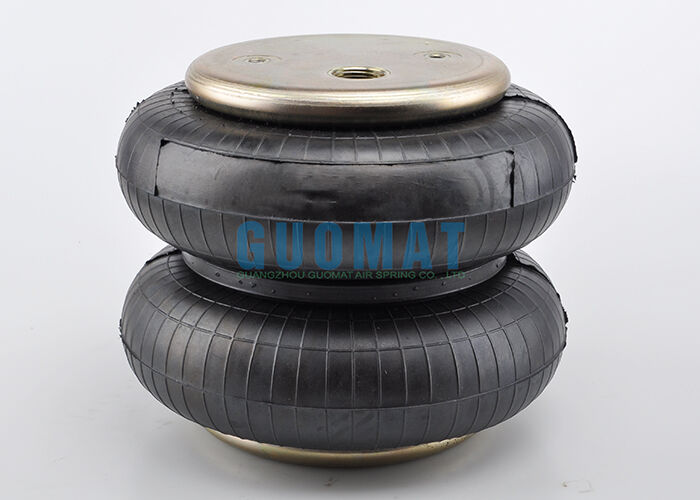

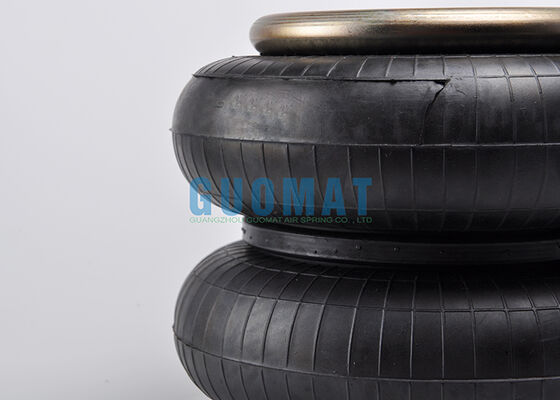

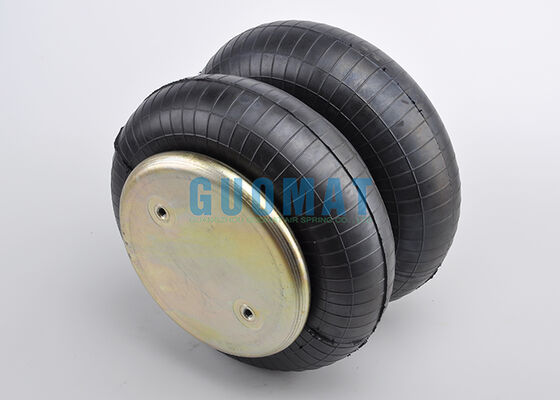

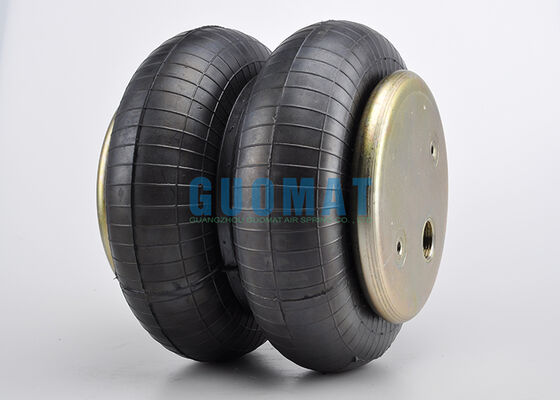

FD 330-22 1/1 M8 Contitech Suspension Air Spring 2682060000 Convoluted Type Air Rubber

The FD 330-22 air spring is designed for suspension and vibration control systems where stable load support and flexible motion are required. Built with reinforced rubber bellows and durable metal mounting plates, the GUOMAT 2B330-22 provides reliable performance in demanding mechanical environments.

Air springs use compressed air as the elastic medium, allowing the system to adapt to different loads while maintaining smooth vertical movement. This makes them an effective alternative to conventional coil or leaf springs in many industrial and suspension applications.

The GUOMAT 2B330-22 corresponds to Contitech FD 330-22 (2682060000) and is manufactured to provide consistent installation compatibility and dependable operating performance.

GUOMAT Number: 2B330-22
Contitech Number: 2682060000
Contitech Number: FD330-22
Contitech Number: FD 330-22
Contitech Number: FD330-22 1/1 M8
Contitech Number: FD 330-22 1/1 M8

Technical Specifications

Parameter	Specification
Top Plate Diameter	226.5 mm
Bolt Center Distance	157.5 mm
Distance Between Air Hole and Bolt	66 mm
Air Hole	G1
Thread Hole Specification	M8
Design Height	212 mm
Maximum Outer Diameter	325 mm

How Air Springs Improve Suspension Performance

Unlike rigid mechanical springs, a convoluted air spring contains a flexible rubber chamber that compresses and expands with air pressure. This structure creates a progressive cushioning effect, allowing the spring to respond smoothly to changing loads.

In practical operation, this helps equipment or vehicles:

Reduce vibration transmitted to the frame or structure
Maintain more stable movement during load changes
Absorb sudden shock from mechanical motion
Improve overall operating smoothness

Reliable Replacement Solution

The GUOMAT 2B330-22 is manufactured according to strict dimensional control to ensure compatibility with standard mounting configurations. This allows it to be used as a replacement air spring in systems originally equipped with FD 330-22 models.

By combining durable rubber materials with reinforced structural design, the air spring provides consistent load support and long operational life even under demanding working conditions.
