215 Double Air Bellow W01-358-7230 Firestone Air Spring Ribbed Neck Aluminum Bead Rings

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2H7230

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Warranty:	12 Months	Convolutions:	2
Packing:	Neutral Packing	Keywords:	Double Convoluted Air Spring
Material:	Rubber And Steel	Color:	Black
Produce Name:	Convoluted Air Spring	MOQ:	6pcs
Highlight:	Firestone air spring ribbed neck , 215 double air bellow suspension , aluminum bead rings air spring

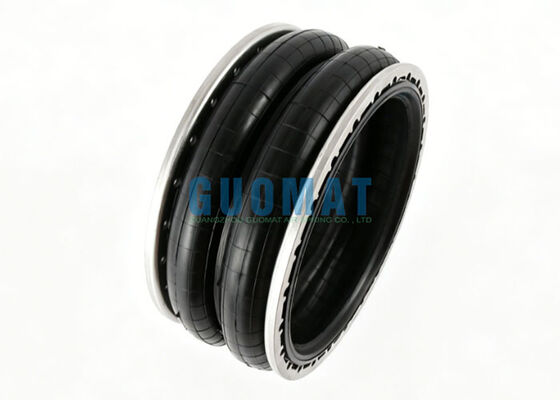

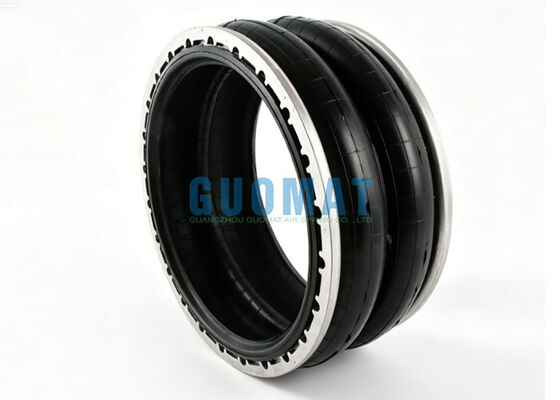

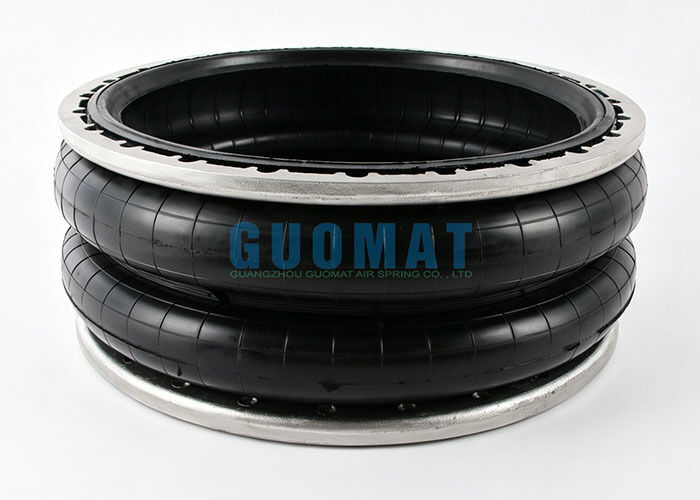

215 Double Air Bellow W01-358-7230 Firestone Air Spring

GUOMAT 2H7230 is a heavy-duty double convoluted rubber air spring designed as a direct replacement for Firestone W01-358-7230 (Style 215). Featuring a high-strength double bellow construction, ribbed neck aluminum bead rings, and premium natural rubber materials, this air spring delivers outstanding load support, vibration isolation, and shock absorption performance in demanding industrial applications.

Manufactured to match the mounting dimensions and operating characteristics of Firestone Style 215 air springs, the GUOMAT 2H7230 provides a reliable and cost-effective alternative for equipment maintenance and replacement projects. It is suitable for heavy industrial machinery, vibration isolation systems, die cushions, material handling equipment, and other pneumatic applications requiring large load capacity and stable performance.

Product Specifications

Brand	GUOMAT
Type	Rubber Air Spring
Model	2H7230
Maximum Diameter @ 100 PSIG	27.9 inches
Maximum Height	12.1 inches
Maximum Stroke	8.6 inches
Minimum Usable Height	3.5 inches
Design Height	10.5 inches
Material	2-Ply, High Strength Cord
Bead Ring Type	4
Bolt Circle Diameter	23.5 inches
Number of Bolts (each ring)	32

Force Performance @ 80 PSI

Force at Stroke of 1 Inch	42,500 pounds
Force at Stroke of 3 Inches	40,000 pounds
Force at Maximum Stroke	28,160 pounds

Load Capacity at Design Height

Load at 40 psig	15,840 pounds
Load at 60 psig	24,140 pounds
Load at 80 psig	32,550 pounds

Vibration Isolation Performance

Natural Frequency (@80 psig)	86 cpm
Isolation at 400 CPM	95.1%
Isolation at 800 CPM	98.8%
Isolation at 1500 CPM	99.7%

OEM Cross-Reference Numbers

Firestone Style 215 - Ribbed Neck Aluminum Bead Rings

Equal spacing, 17/8" bolts, nuts, washers:
W01-358-7230 / WO1-358-7230
W01 358 7230 / WO1 358 7230
W013587230 / WO13587230

Unequal spacing, 17/8" bolts, nuts, washers:
W01-358-7301 / WO1-358-7301
W01 358 7301 / WO1 358 7301
W013587301 / WO13587301

Equal spacing, 11/4" bolts, nuts, washers:
W01-358-7302 / WO1-358-7302
W01 358 7302 / WO1 358 7302
W013587302 / WO13587302

Rubber bellows only:
W01-358-7912 / WO1-358-7912
W01 358 7912 / WO1 358 7912
W013587912 / WO13587912

Applications

Industrial vibration isolation systems
Die cushion equipment
Press machines
Material handling equipment
Pneumatic actuators
Heavy machinery suspension systems
Mining and processing equipment
Automation and manufacturing machinery
