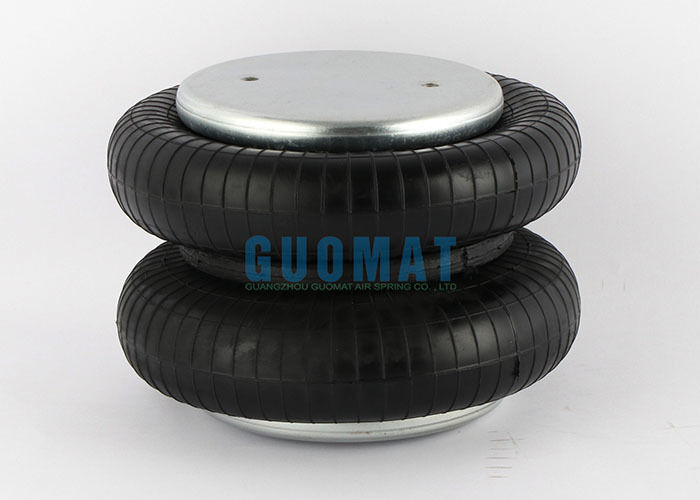

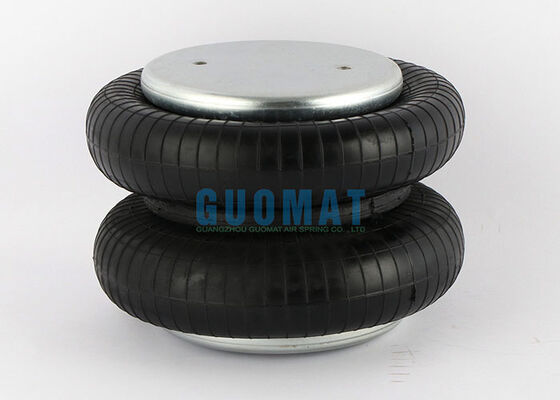

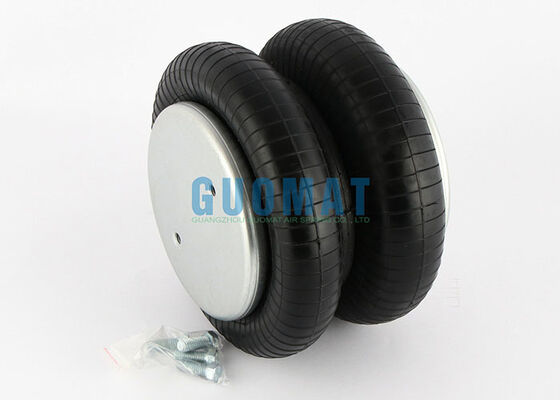

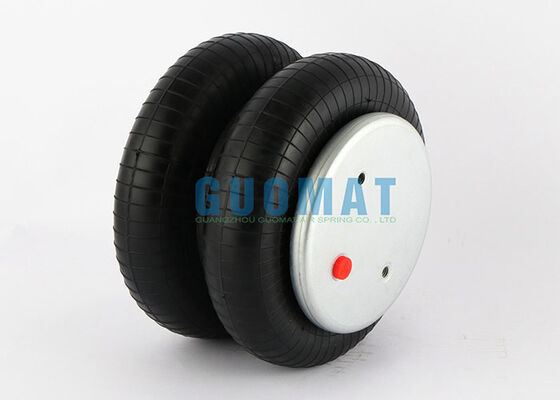

SP2B07R Phoenix Rubber Air Spring G1/4 Air Fitting Double Convoluted Suspenison Air Bags

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B12017-54

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$59.9-69.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Name:	Air Suspension Spring	Air Fitting Size:	G1/4
Working Temperature:	-40℃+70℃	Height:	160mm
Main Material:	Steel,Natural Rubber	Shockabsorption:	High
Custom Description:	Pneumatic Air Spring	OEM No.:	SP 2 B 07 R
Highlight:	Phoenix Rubber air spring G1/4 fitting , double convoluted suspension air bags , air spring suspension with G1/4 port

SP2B07R Phoenix Rubber Air Spring with G1/4 Air Fitting

Double convoluted suspension air bags designed for reliable performance in industrial applications.

Product Overview

Item: Suspension Air Spring

Brand: GUOMAT

Model No.: 2B12017-54

Material: Rubber + Steel Construction

Compatible Replacements

Phoenix SP2B07R
Phoenix SP 2B07R
Phoenix SP 2B 07R
Phoenix SP 2B 07 R

Technical Specifications

Top Cover Plate Diameter	110mm
Top Threaded Holes	2 x M8
Center-to-Center Distance (Top Holes)	54mm
Bottom Cover Plate Diameter	135mm
Air Port	G1/4
Bottom Threaded Holes	2 x M8
Center-to-Center Distance (Bottom Holes)	54mm
Center-to-Center Distance (Air Port to Threaded Holes)	26mm
Outer Diameter	215mm
Natural Height	160mm
Maximum Height	230mm
Minimum Height	75mm

Quality Assurance

All GUOMAT air springs undergo rigorous quality inspections before shipment to ensure reliable performance and customer satisfaction. Products are carefully packaged to prevent transit damage and arrive ready for immediate installation.

Warranty & Support

GUOMAT provides a comprehensive 12-month warranty against manufacturing defects under normal operating conditions. Technical support and after-sales service are available to customers worldwide.

Compatible Double Convoluted Phoenix Air Spring Models

Model Series
SP 2B 05 R-a \| SP 2B 07 R \| SP 2B 12 R
SP 2B 12 R-1 \| SP 2B 12 R-2 \| SP 2B 12 R-3
SP 2B 22 R \| SP 2B 34 R \| SP 2B 34 R-b
2B 07 R \| 2B 12 R \| 2B 12 R-3
2B 15 R \| 2B 20 R \| 2B 20 R-9
2B 21 R \| 2B 21 R-9 \| 2B 22 R a-9
2B 22 R \| 2B 24 R \| 2B 24 R-b
2B 49 R-a \| 2B 49 R-b \| 2B 85 R
