6" x 3 Rubber Bellows W01R584095 Firestone Triple Convoluted Air Spring With G1/2 Air Hole

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3B6X3T

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$169.9-199.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Name:	Rubber Air Spring	Cross References:	Firestone W01-R58-4095
Service:	Sample And OEM	Size:	OEM Standard
Sample:	Available	Other Names:	Air Shock
Material:	Rubber	Warranty:	1 Year
Highlight:	6x3 Rubber Bellows air spring , Firestone triple convoluted air spring , G1/2 air hole suspension spring

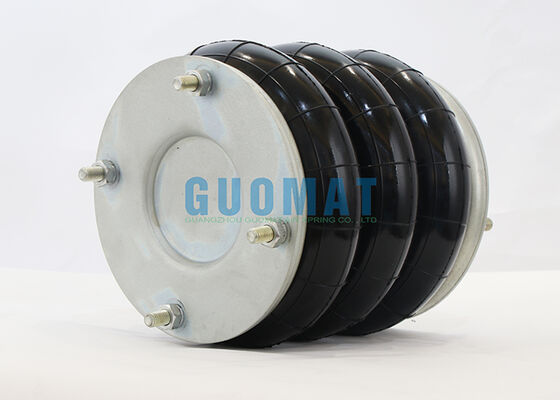

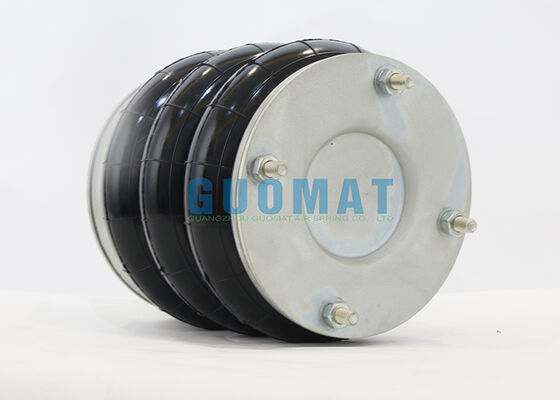

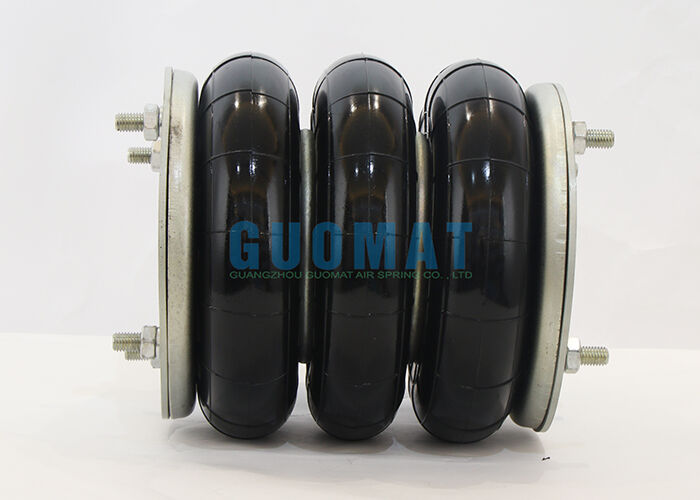

6" x 3 Rubber Bellows W01R584095 Firestone Triple Convoluted Air Spring With G1/2 Air Hole

The GUOMAT 3B6X3T Triple Convoluted Air Spring is a high-performance rubber bellows designed as a direct replacement for Firestone W01-R58-4095 / W01R584095 and equivalent industrial air suspension systems. Built with a compact 6-inch diameter and 3-convolution structure, it delivers stable load support, excellent vibration isolation, and long service life in demanding industrial and vehicle applications.

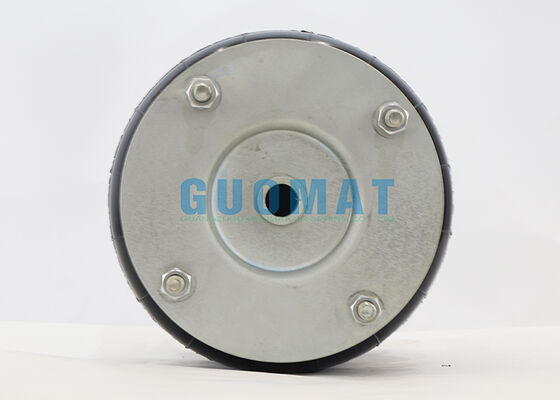

This model features a G1/2 air inlet port, ensuring reliable air sealing and fast inflation response. It is widely used in industrial machinery, vibration tables, conveyors, die cushions, and light-duty suspension systems, where controlled damping and precise load adjustment are required.

Compatible Part Numbers

Firestone

Firestone Style: 6''X3
W01R584095
W01 R58 4095
W01-R58-4095

Contitech

FT76-20DS
FT 76-20DS
FT 76-20 DS

Norgren

M/31063
M 31063
M31063

Dunlop

SP2861
SP 2861

Parker

9109007

Technical Specifications

Cover plate diameter: 153.5 mm

Bolt: M10

Bolt center-to-center distance: 127 mm

Maximum outer diameter: 178 mm

Maximum height: 285 mm

Minimum height: 95 mm

Pressure vs Height Performance Data

Height H (mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol. V(cm³)
95	540	720	900	1080	1260	1440	150
125	502	668	834	997	1163	1327	575
155	450	600	745	898	1045	1195	995
175	409	543	678	815	946	1081	1275
200	354	472	590	708	826	944	1600
240	258	344	430	516	602	688	2125
275	150	200	250	300	350	400	2550
