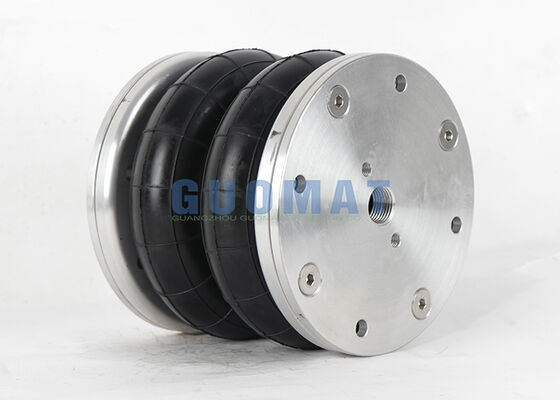

4 1/2''X1 IMI Norgren Air Bellows Single Acting PM/31042 Rubber Air Spring Bags

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B4.5X2P

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$89.9-109.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type:	Industrial Air Spring	Shock Absorber Type:	Gas-Filled
Condition:	Brand-New	Function:	Shock Absorption
Spring Material:	Rubber+Steel	Contitech:	FD 44-10 DI
Norgren:	PM/31042	Color:	Black
Highlight:	IMI Norgren air bellows rubber spring , single acting air spring bags , 4 1/2 inch suspension air spring

4 1/2''X1 IMI Norgren Air Bellows Single Acting PM/31042 Rubber Air Spring Bags

The GUOMAT 1B4.5X1P is a single convoluted rubber air spring designed as a replacement for the IMI Norgren PM/31042 air bellows. With a compact 4 1/2'' × 1 convoluted design, this industrial air spring provides reliable pneumatic support, vibration isolation, shock absorption, and height adjustment for a wide range of industrial equipment.

Manufactured with high-quality rubber bellows and durable steel components, the 1B4.5X1P offers good flexibility, load support, and resistance to repeated compression cycles. Its compact structure makes it suitable for applications where installation space is limited.

This rubber air bag can be used in industrial machinery, automation equipment, pneumatic systems, packaging machines, assembly equipment, vibration isolation systems, and other applications requiring a compact industrial air spring or air bellow.

Cross-Reference Part Numbers

Continental ContiTech: FD 44-10 DI G3/8 CR

Continental ContiTech: FD 44-10 DI CR G3/8

Continental ContiTech: FD 44-10 DI G3/8 M6

Continental ContiTech: FD 44-10 DI CR 70206

Firestone Style: 4/2" x 2/41/2"x2/41/2x2

Dunlop FR:41/2"x2 SP2441YS-AIR: YS-115-2V/YS 115 2V/YS1152V

Continental ContiTech Bellow: FD 44-10 /FD44-10 / FD4410

Firestone No.: W01-R58-4051/W01 R58 4051/W01R584051

Dunlop UK (Pneuride): PNP 30559 01 07/PNP305590107

Norgren: PM/31042/PM 31042/PM31042

Nominal 0 (inch) x convolutions: 41/2" x2/41/2"x2/41/2x2

Key Advantages

Direct replacement solution for IMI Norgren PM/31042 applications
High-quality rubber air bellows for flexible and stable operation
Compact single-convoluted design for space-limited installations
Helps reduce mechanical vibration, shock and unwanted movement
Suitable for repeated industrial operating cycles
GUOMAT supports model cross-reference and replacement verification
OEM and customized requirements are available

Technical Specifications

Nominal Ø (inch) x convolutions	Stroke (mm)	Installation height [A] min. (mm)	Recommended working height [B] max. (mm)	Installation height [C] max. (mm)	Max. torque for mounting studs (Nm)	Natural frequency [fn] at 4 bar (Hz)	Stiffness at 4 bar (N/mm)	Recommended vibration height (mm)	Ø E	Ø D	Ø F	Ø N	Weight (kg)	Model
6" x 1	55	50	95	105	25	3.63	250	85	175	154	127	190	2.2	M/31061
6" x 2	115	75	170	190	25	2.23	83	155	175	154	127	190	2.2	M/31062
8" x 1	75	50	115	125	25	2.72	250	100	230	184	155.5	245	3	M/31081
8" x 2	175	75	220	250	25	1.86	105	200	230	184	155.5	245	3.7	M/31082
10" x 1	100	50	135	150	25	2.6	257	120	270	210	181	300	4.1	M/31101
10" x 2	225	75	245	300	25	1.8	123	220	270	210	181	300	4.7	M/31102
10" x 3	330	100	350	430	25	-	-	-	270	210	181	300	5.2	M/31103
12" x 1	100	50	135	150	25	2.5	372	120	330	260	232	350	5.4	M/31121
12" x 2	225	75	245	300	25	1.8	200	220	330	260	232	350	6.2	M/31122
12" x 3	330	100	350	430	25	-	-	-	330	260	232	350	6.9	M/31123
14 1/2" x 1	100	50	135	150	25	2.4	558	130	400	310	282.5	425	7.1	M/31141
14 1/2" x 2	265	75	290	340	25	1.6	252	250	400	310	282.5	425	8.3	M/31142
14 1/2" x 3	380	100	420	480	25	-	-	-	400	310	282.5	425	9.6	M/31143
16" x 2	215	75	350	390	25	2.2	485	300	435	310	282.5	460	7.6	M/31162
16" x 3	430	120	475	550	25	-	-	-	430	310	282.5	455	10.4	M/31163
