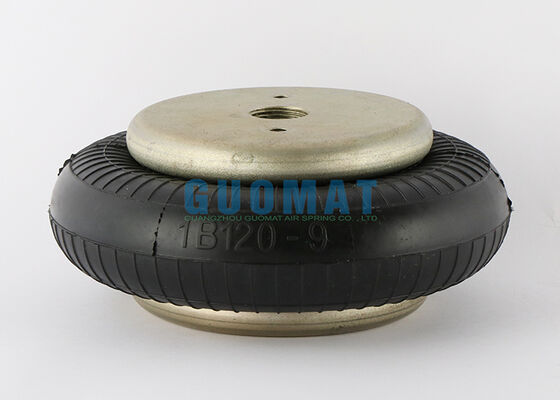

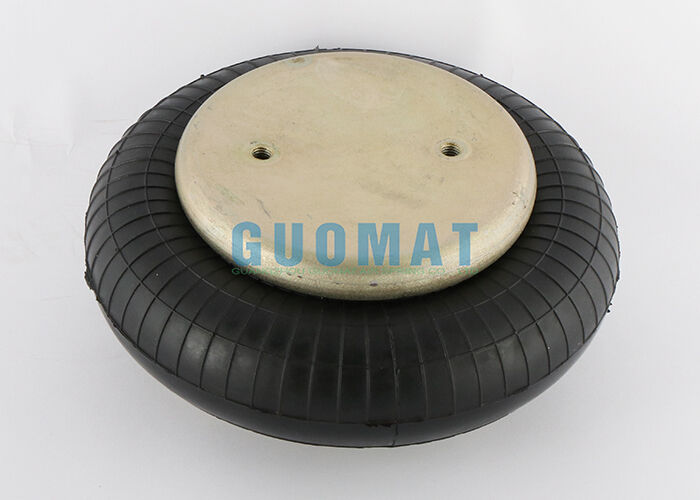

PM/31082 Norgren Rubber Air Bellows FS120-9 G3/4 M8 Suspension Air Shock

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B1209-3/4M8

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item Name:	Flange Air Spring	Brand New:	100%
Air Spring:	Suspension Assembly	Compatibility:	Universal
Trademark:	GUOMAT	Product Feature:	In-situ Installation
Structure:	Single Convoluted	Norgren:	PM/31081
Highlight:	Norgren rubber air bellows suspension , FS120-9 air shock with M8 thread , G3/4 suspension air spring

PM/31082 Norgren Rubber Air Bellows FS120-9 G3/4 M8 Suspension Air Shock

High-quality rubber air bellow designed for superior vibration isolation and shock absorption in industrial pneumatic applications.

Product Specifications

Brand	GUOMAT
Model No.	1B1209-3/4M8
Material	Rubber and Steel
Warranty	1 Year
Package	Cartons
Type	Rubber Air Spring

Compatible Part Numbers

Continental ContiTech: FS 120-9 3/4 M8

Continental ContiTech: FS 120-9 CI G3/4

ContiTech Bellow: FS 120-9/FS120-9/FS1209

Firestone: W01-M58-6165/W01 M58 6165/W01M586165

Firestone Style: 116B

Dunlop FR: 8"x1 S08101

B-osch: 822419003

Festo: EB-215-80/EB 21580/EB21580

Norgren: PM/31081/PM 31081/PM31081

Nominal 0 (inch) x convolutions: 8" x1/8"x1/8xl

Weforma: WBE 300-E1/WBE 300 E1/WBE300E1

Airtech: 111003

Airtech Style: 1B-190/1B190/1B190

Megatech: 1S120-9 3/4 M8

Technical Specifications

Model	Cylinder Ø [inch]	Air Port	Nominal Ø x Convolutions	Stroke [mm]	Installation Height Min [mm]	Recommended Max Working Height [mm]	Installation Height Max [mm]	Retracting Force to Reach Min Height [N]
PM/31063	6"	G1/2	6" x 3	190	100	255	285	250
PM/31081	8"	G3/4	8" x 1	95	55	140	150	60
PM/31082	8"	G3/4	8" x 2	185	80	250	265	110
PM/31091	9 1/4"	G3/4	9 1/4" x 1	105	55	150	160	150
PM/31092	9 1/4"	G3/4	9 1/4" x 2	230	80	295	310	170
PM/31121	12"	G3/4	12" x 1	129	51	151	180	300
PM/31122	12"	G3/4	12" x 2	230	75	265	305	300
PM/31123	12"	G3/4	12" x 3	320	110	395	430	400
