1B12-301 Single Convoluted Airbag 578-91-3-301 High Performance Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B5330

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	US$49.9-59.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type:	Gas-Filled	Contitech:	FS 330-11 468
Selling Units:	Single Item	Product Material:	High Quality Rubber And Steel
Size:	OEM Standard	Temperaturerange:	-40°C To 70°C
Color:	Black	Key Words:	Air Spring,Air Suspension Kit
Highlight:	Single Convoluted Airbag 578-91-3-301 , High Performance Suspension Air Spring , 1B12-301 Air Spring Replacement

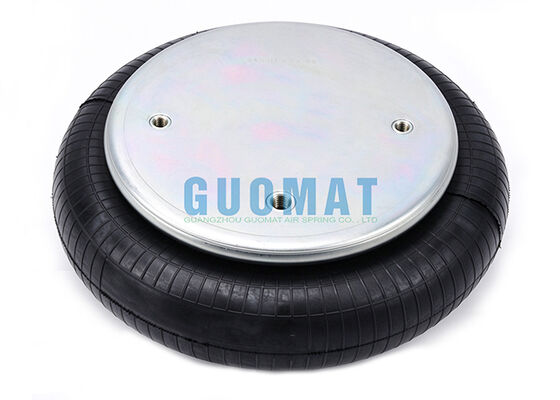

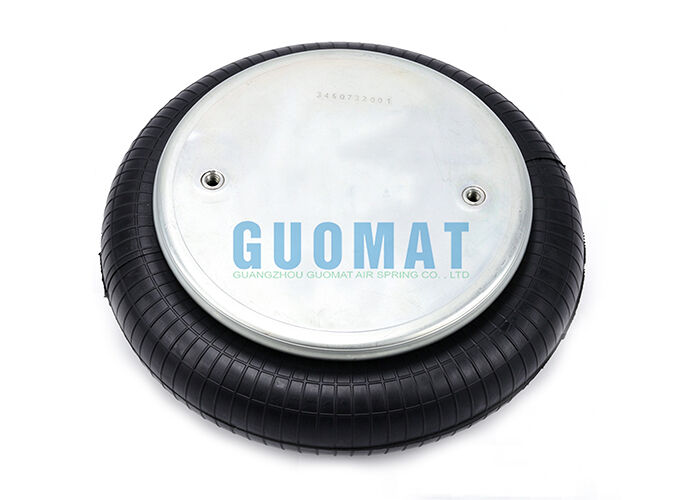

Product Overview: GUOMAT 1B5330 Single Convoluted Air Spring

The GUOMAT 1B5330 Single Convoluted Air Spring is a high-performance rubber air spring engineered for suspension and vibration isolation applications. Its single-convoluted design combines a durable rubber bellows with metal components, delivering flexible load support and effective vibration absorption for compatible suspension systems.

This air spring is designed to reduce vibration and absorb shocks caused by road conditions and equipment movement. The flexible rubber construction responds dynamically to changing loads and motion, helping to improve suspension performance and operating comfort across a range of applications.

Product Specifications

Type	Single Convoluted Type Suspension Air Spring
Brand	GUOMAT
Model	1B5330
Material	Rubber and Metal Components
Application	Suspension and Vibration Isolation

Technical Data

Air Fitting	1/4" NPT
Offset	2.88"
End Plate Diameter	9.00"
Mounting Holes (Top)	(2) 3/8"-16
Mounting Holes (Bottom)	(2) 1/2"-13
Mounting Hole Spacing	6.20"
Bumper	Yes
Max. Height	7.2"
Min. Height	2.6"

Cross-Reference & Replacement Models

The GUOMAT 1B5330 air spring is a direct replacement for the following OEM and aftermarket part numbers:

AUTOMANN ABSP1B22A-7009
CONTITECH 64595
CONTITECH FS330-11 468
CONTITECH FS 330-11 468
FIRESTONE 7009
FIRESTONE W01-358-7009
FIRESTONE W01 358 7009
FIRESTONE W013587009
GOODYEAR 1B12-301
GOODYEAR 1B 12-301
GOODYEAR 1B12 301
GOODYEAR 578-91-3-301
GOODYEAR 578 91 3 301
GOODYEAR 578913301
NEWAY 905-57-002
TRIANGLE 4468
TRP AS70090

Why Choose GUOMAT Air Springs?

Product Identification Support: Assistance with model numbers and cross-reference information to ensure the correct fit.
Specification Verification: Support in checking dimensions and mounting configurations before ordering.
Flexible Sourcing: Solutions for replacement requirements and different purchasing quantities.
Export Packaging: Packaging options suitable for international shipment.
After-Sales Assistance: Support with product selection and technical specification questions.

Product Drawing
