3B14-451 Goodyear Replacement Air Bag 556-33-8-335 Air Suspension Parts For Material Handling Equipment

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3B7846

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	US$69.9-79.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type:	Triple Convoluted Air Spring For Air Suspension	Brand:	GUOMAT
Material:	Rubber+Steel	Warranty:	1 Year
Goodyear:	3B14-451	Top Plate Dia.:	11.3''
Min Height:	4.9''	Max Height:	20.5''
Highlight:	Goodyear replacement air bag 556-33-8-335 , Air suspension parts for material handling , Suspension air spring replacement

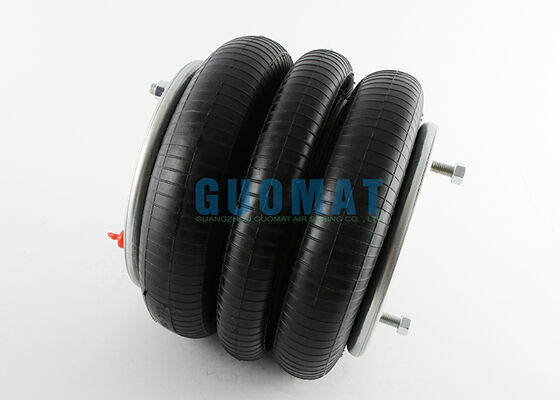

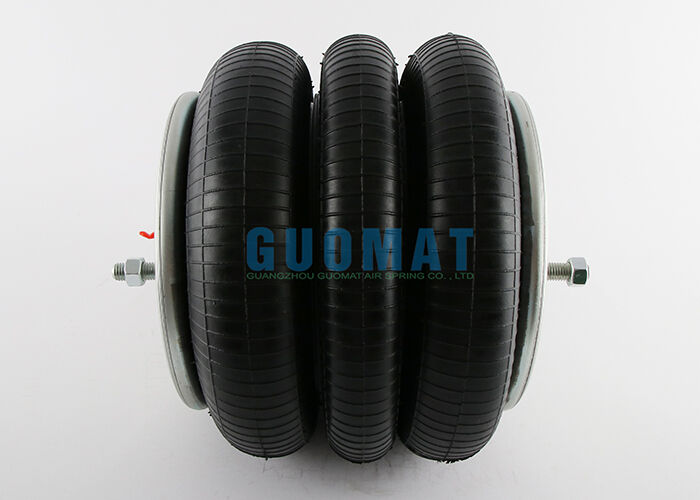

Product Overview: GUOMAT 3B7846 Replacement Air Spring

The GUOMAT 3B7846 is a triple convoluted air spring engineered as a direct replacement for Goodyear part numbers 3B14-451 and 556-33-8-335. Built from durable rubber bellows and steel components, it is designed for compatible material handling equipment and industrial machinery. This air suspension component delivers vibration isolation, shock absorption, and pneumatic load support, helping to improve equipment stability and reduce mechanical vibration during operation.

Before ordering, please verify the original part number, mounting dimensions, air inlet specifications, and operating requirements to confirm compatibility with your equipment.

Key Specifications

Brand	GUOMAT
GUOMAT Part Number	3B7846
Material	Rubber and Steel
Product Type	Triple Convoluted Air Spring
Warranty	12 Months

Compatible OEM Part Numbers

This air spring is referenced against the following OEM part numbers for cross-compatibility:

GOODYEAR 3B14-451
GOODYEAR 3B 14-451
GOODYEAR 3B14 451
GOODYEAR 556-33-8-335
GOODYEAR 556 33 8 335
GOODYEAR 556338335
AUTOMANN ABSP3B32RA-7846
CONTITECH 64582
CONTITECH FT 530-35 456
FIRESTONE 7846
FIRESTONE W01-358-7846
FIRESTONE W01 358 7846
FIRESTONE W013587846
HENDRICKSON S-7853
TRIANGLE 4456

Technical Data

Top Plate Hole / Stud Quantity	2
Top Plate Diameter	11.3
Top Plate Center-to-Center Diameter	7.75
Bottom Plate Hole / Stud Quantity	4
Bottom Plate Diameter	11.3
Bottom Plate Center-to-Center Diameter	8.84
Bottom Plate Alignment	90 Degree
Bumper	Yes
Minimum Height	4.9
Maximum Height	20.5

How to Select the Correct Air Spring

Check Item	Why It Matters
Original Part Number	Helps identify the intended replacement
Overall Diameter	Ensures adequate installation clearance
Minimum and Maximum Height	Confirms the required working stroke
Mounting Hole Positions	Ensures correct installation
Air Inlet Thread	Matches the pneumatic connection
Load and Operating Pressure	Supports safe and appropriate selection
