556-33-8-335 Rubber Bellows 3B14-452 Goodyear Suspension Air Spring Vibration Isolation System

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3B7850

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	US$79.9-99.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Stroke:	3.8''-12.4''	Package:	Neutral Packing Or As Requirement
Bellows Structure:	Triple Convoluted Type	Condition:	100% Brand-New
Delivery:	3~7 Days	Warranty:	12 Months
Shock Absorber Type:	Gas-Filled	Color:	Black
Highlight:	Rubber Bellows Suspension Air Spring , Goodyear 3B14-452 Air Spring , Vibration Isolation Air Spring

Product Overview

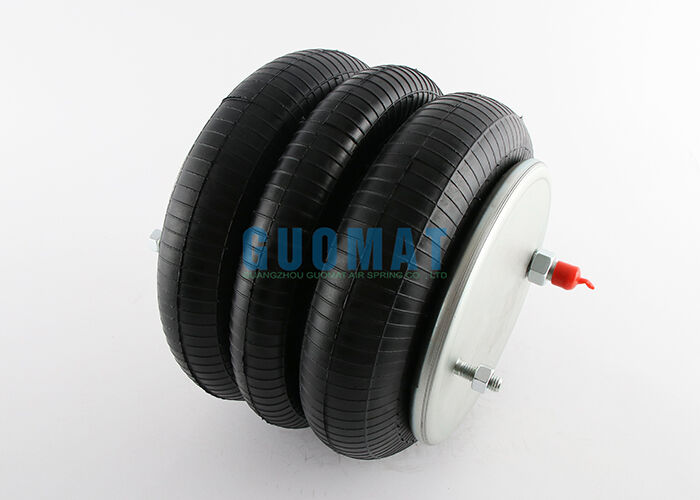

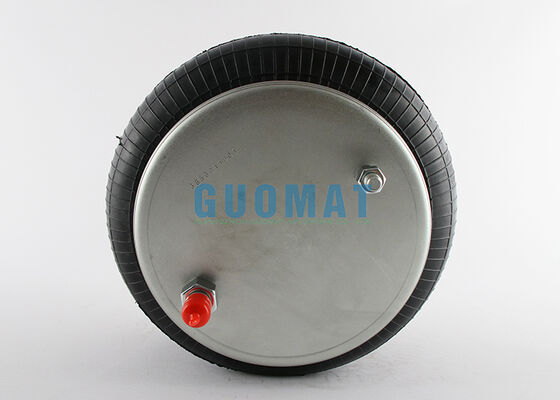

The GUOMAT 3B7850 is a triple-convoluted rubber bellows air spring engineered for vibration isolation, shock absorption, and load support in industrial machinery and pneumatic suspension systems. It serves as a compatible replacement for the Goodyear 3B14-452 and related cross-reference part numbers, delivering reliable performance in demanding industrial environments.

Technical Specifications

Brand	GUOMAT
GUOMAT Part Number	3B7850
Product Type	Rubber Bellows Air Spring
Structure	Triple-Convoluted
Material	Rubber and Metal Components
Main Functions	Vibration Isolation, Shock Absorption, Load Support
Application	Industrial Machinery and Pneumatic Suspension Systems
Replacement Type	Compatible Replacement Air Spring

Cross-Reference Part Numbers

The GUOMAT 3B7850 is compatible with the following OEM and aftermarket part numbers:

GOODYEAR 3B14-452
GOODYEAR 3B 14-452
GOODYEAR 556338335
GOODYEAR 556 33 8 335
GOODYEAR 556-33-8-335
AUTOMANN ABSP3B32RA-7850
CONTITECH 64580
CONTITECH FT530-35441
CONTITECH FT 530-35441
CONTITECH FT 530-35 441
FIRESTONE 7850
FIRESTONE W013587850
FIRESTONE W01 358 7850
FIRESTONE W01-358-7850
HISTEER 10301
SUSPENSIONS INC. 200177
TRIANGLE 4441
WATSON&CHALIN AS-0086

Typical Applications

The GUOMAT 3B7850 air spring is suitable for compatible industrial equipment requiring vibration isolation or pneumatic support, including:

Industrial machinery and automated production lines
Vibration isolation systems
Material handling equipment
Mechanical shock absorption systems
Equipment support and pneumatic suspension assemblies

Actual suitability depends on the equipment design, installation dimensions, operating pressure, and required load capacity.

FT 530 Contitech Air Spring Cross-Reference

The following table maps Contitech FT 530 series air spring part numbers to their corresponding Firestone equivalents for reference and interchangeability.

Contitech	Firestone
FT 530-32 325	W01-358-7818
FT 530-32 329	W01-358-7798
FT 530-32 333	W01-358-7800
FT 530-32 336	W01-358-7808
FT 530-32 535	W01-358-7797
FT 530-32 536	W01-358-7796
FT 530-32-333	W01-358-7800
FT 530-35 436	W01-358-7838
FT 530-35 437	W01-358-7839
FT 530-35 438	W01-358-7844
FT 530-35 439	W01-358-7848
FT 530-35 441	W01-358-7850
FT 530-35 455	W01-358-7843
FT 530-35 456	W01-358-7846
FT 530-35 457	W01-358-7847
FT 530-35 521	W01-358-7845
FT 530-35 522	W01-358-7855
FT 530-35 523	W01-358-7859
FT 530-35 534	W01-358-7862
FT 530-35 537	W01-358-7853
