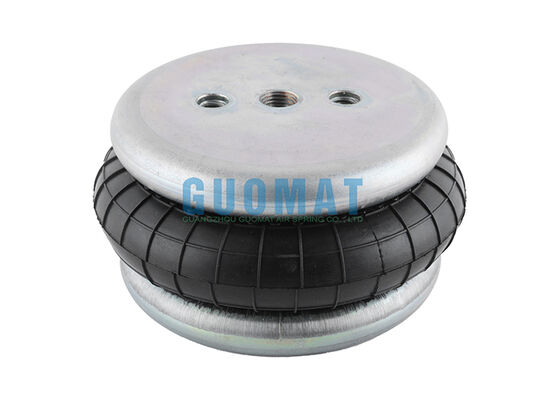

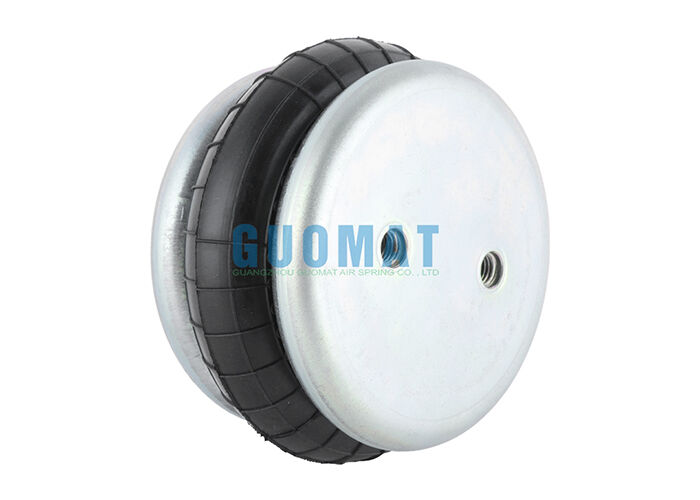

Torpress 16 Single Convoluted Type Air Bags 93029 Rubber Air Bellows Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	93029

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	US$59.9-69.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type:	Industrial Air Spring	Layer Number:	Single Convolution
Temperaturerange:	-40°C To 70°C	Net Weight:	1.6 KG
Air Inlet:	1/4NPTF	Manufacturer Warranty:	One Year
Applications:	Automotive Suspension, Industrial Machinery, Vibration Isolation	Torpress:	16/93029
Highlight:	Torpress 16 single convoluted air bag , 93029 rubber air bellows spring , rubber air spring replacement

Product Overview

The Torpress 16 Single Convoluted Type Air Bag (Model 93029) is a rubber air spring / air bellows assembly engineered for reliable load support and vibration isolation. Constructed from rubber and steel, it delivers consistent performance in industrial suspension and pneumatic applications.

Specifications

Type	Rubber Air Spring
Model Number	93029
Warranty	1 Year
Material	Rubber and Steel
Package	Strong Cartons

Cross Reference Part Numbers

TORPRESS

Model No.: 116

Part No.: 93029 / 93086

FIRESTONE

Style No.: 16

Part No.: W01-358-7001 / WO1-358-7001

Part No.: W01 358 7001 / WO1 358 7001

Part No.: W013587001 / WO13587001

Continental CONTITECH

Model No.: 75246

Part No.: FS 50-5

Part No.: FS 50-5 CI

Part No.: FS 50-5 CI 1/4NPT

Technical Data

Connection	Cover Plate
Max. Outer Diameter	153 mm
Min. Height	46 mm
Max. Height	91 mm
Static Height	70 mm
Thread Air Hole	1/4'' NPTF
Center Distance	44.5 mm
Cover Plate Diameter	114.5 mm
Connecting Bolts / Holes Number	2 PCS × 3/8''-16 UNC
Cover Plate Height	16 mm
Effective Area	86 cm²
Capacity	600 daN
Frequency	250 cicli / 1'
Stiffness	21 daN/mm

Packaging and Delivery

Packaging: Individual protective packaging and export-grade cartons.
Shipping Methods: Courier, air freight, or sea freight.
Order Quantity: Please contact GUOMAT to inquire about current stock and minimum order requirements.
Lead Time: Determined based on stock availability and order quantity.
OEM and Custom Packaging: Available upon request.

After-Sales Support

GUOMAT provides product identification and replacement consultation services. If you need to replace an existing product, please provide the original part number, photographs of the item, dimensional specifications, or installation details so that we can assist you in identifying a suitable replacement.
